Model No.: WDI-3038
Certification: Ce, Other, Ce, Rohs
product status: Stock
Types of: Barcode Scanner
Scanning element type: Ccd, Cmos
Color point: 32 Bit
Interface Type: Usb, usb, TTL-232/USB
place of origin: China
Warranty period (years): 1-Year
After-sales service: Call Center And On-Line Technical Support
Private Mold: Yes
Products Status: Stock
Type: 2D Barcode Reader Module
Scan Element Type: 2D
Colour Depth: 32 Bit
Max Paper Size: N/A
Optical Resolution: 640X480 pixels
Scan Speed: 60fps
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Return and Replacement, Call Center and on-line Technical Support
Software development kit (SDK): NO
Product Name: 2D Barcode Reader Module
Product Type: QR Bar Code Scan Engine
Interface: TTL-232/USB
Field of view: 66°(H),50°(V)
Language: Multiple languages
Operating Temperature: -10℃-50℃
Packaging: Customized Packing (Negotiated)
Productivity: 100000
Brand: winson
Transportation: Ocean,Land,Air,Express,Others
Place of Origin: china
Certificate: ce
Port: guangzhou

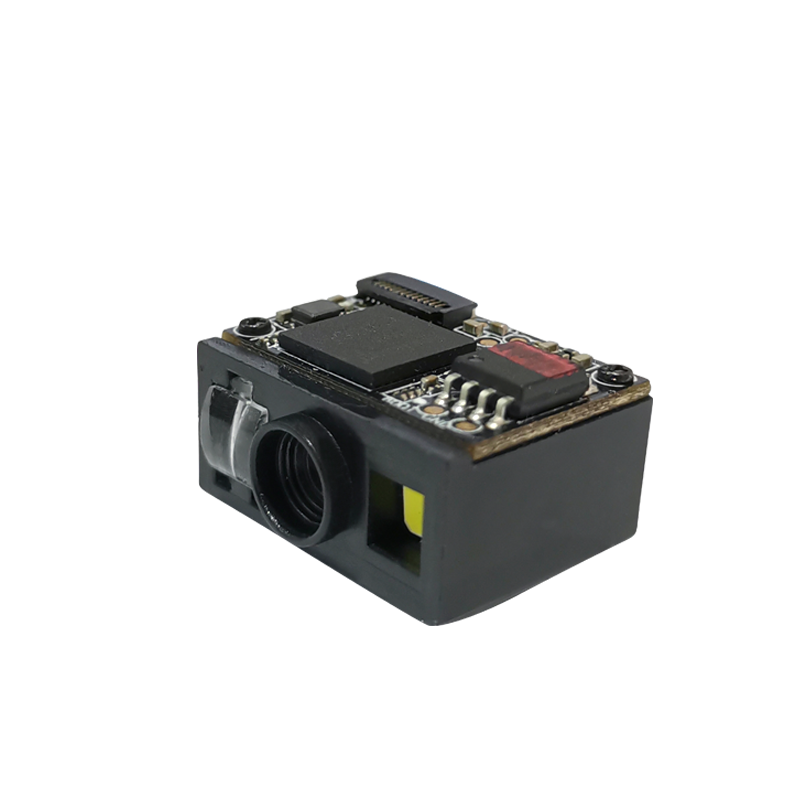

Winson WDI-3038 2D barcode scanner engine 1D Code Reader Engine
Supports Continuous/Auto-Induction , 2modes for option Barcode Scanner For Warehouse.
Can scan the phone, computer and other electronic screen Embed Scan Module.
| Scanning performance | |
| Resolution | 640x480 pixels |
| Field of view | 66°(H),50°(V) |
| Scanning angle | Rotate 360 °, front and back ± 40 °, left and right ± 60 ° |
| illumination |
0~10,000Lux |
| Use environment | |
| Operating temperature | -10℃-50℃ |
| Storage temperature | -40℃-80℃ |
| Relative temperature | 5%-95% |
| Logistics characteristics | |
| Weight | <5g |
| Size | 21.2x16.9x11.2(mm) |
