Model No.: WDI-2010
Certification: Ce, Fcc, Rohs
product status: Stock
Types of: Barcode Scanner
Scanning element type: Ccd
Color point: 32 Bit
Interface Type: Usb, usb, TTL-232
place of origin: China
Warranty period (years): 1-Year
After-sales service: Call Center And On-Line Technical Support
Products Status: Stock
Type: Barcode Scanner
Scan Element Type: Cmos
Colour Depth: 32 Bit
Max Paper Size: N/A
Optical Resolution: 648*488 pix
Scan Speed: 350±50 (scans/second)
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Product Name: Barcode Reader Module
Interface: TTL-232/USB
Interface connector: 0.5-12P FPC
Photo sensor: CMOS array sensor
Voltage / Current: DC 3.3V±5%; Max 100ma
Sensor resolution: 648*488 pixels
Print Contrast: 20%UPC/EAN 13(13mil)
Compatibility: Win OS/Mac OS/Linux/Android/IOS/Embedded OS
Dimensions (W X D X H): 28mm x 20mm x 10.5mm
Weight: 5g
Packaging: Brown Box Packing or Customized Packing (Negotiated)
Productivity: 10000
Brand: winson
Transportation: Ocean,Land,Air,Express,Others
Place of Origin: china
Supply Ability: 100000
Certificate: ce
Port: guangzhou

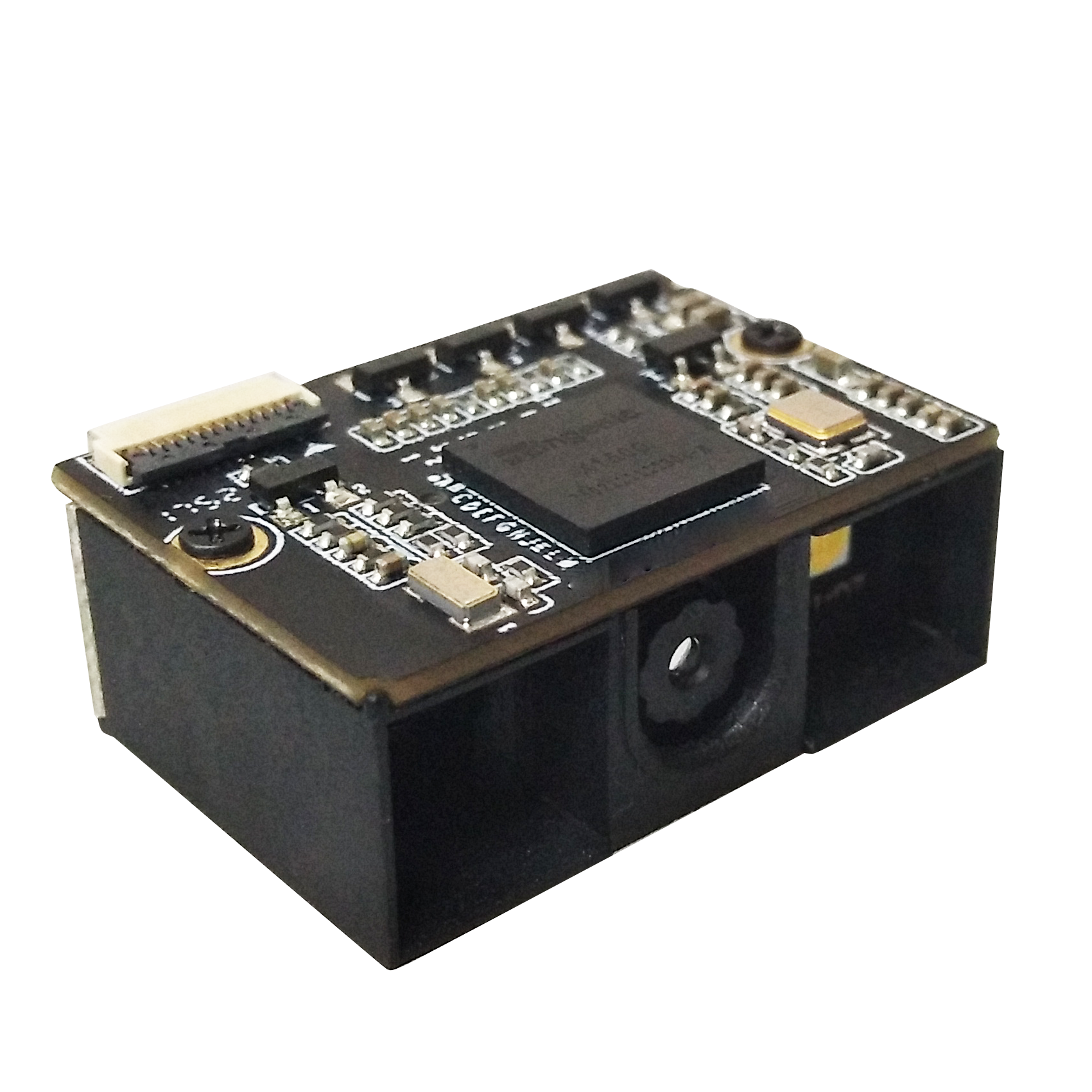

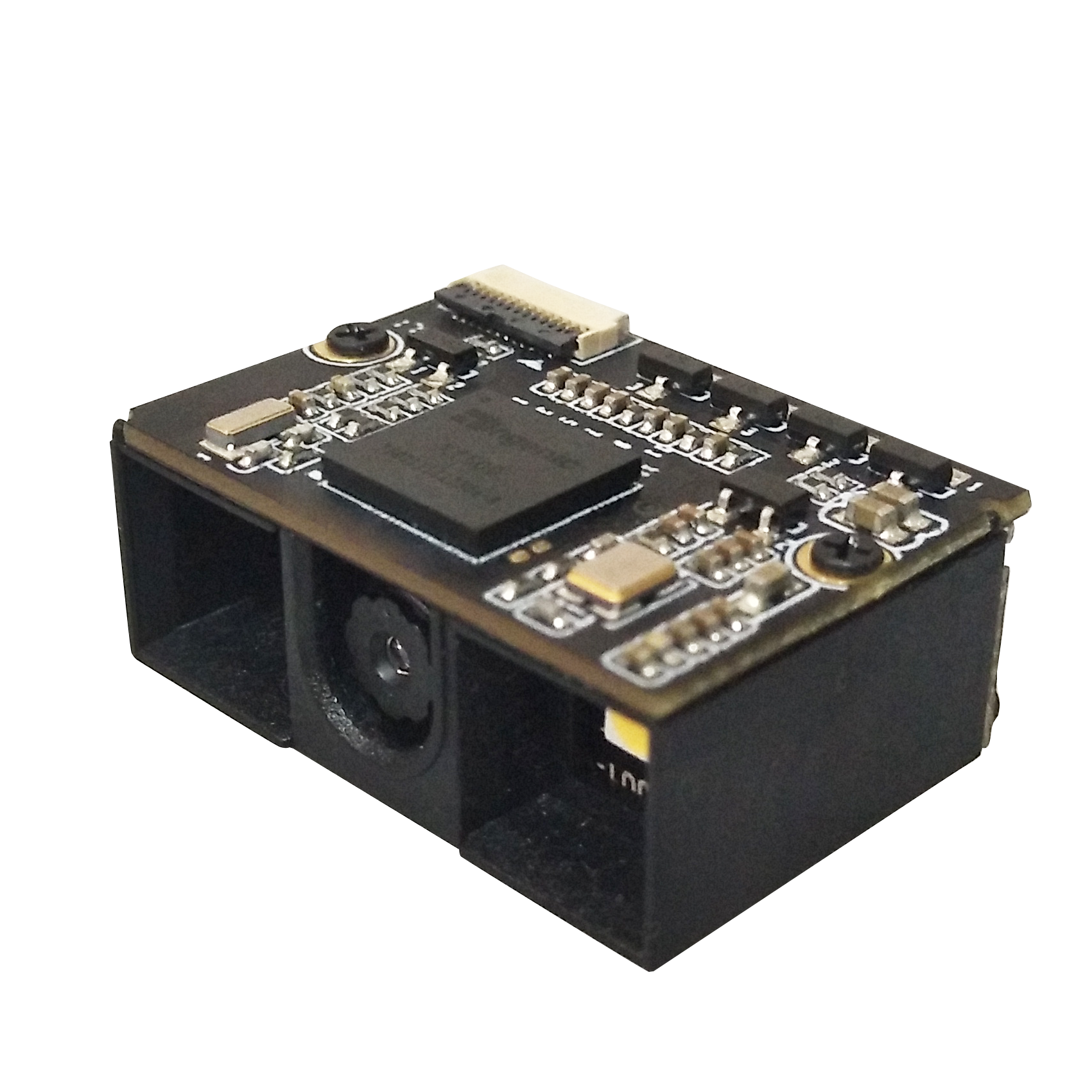

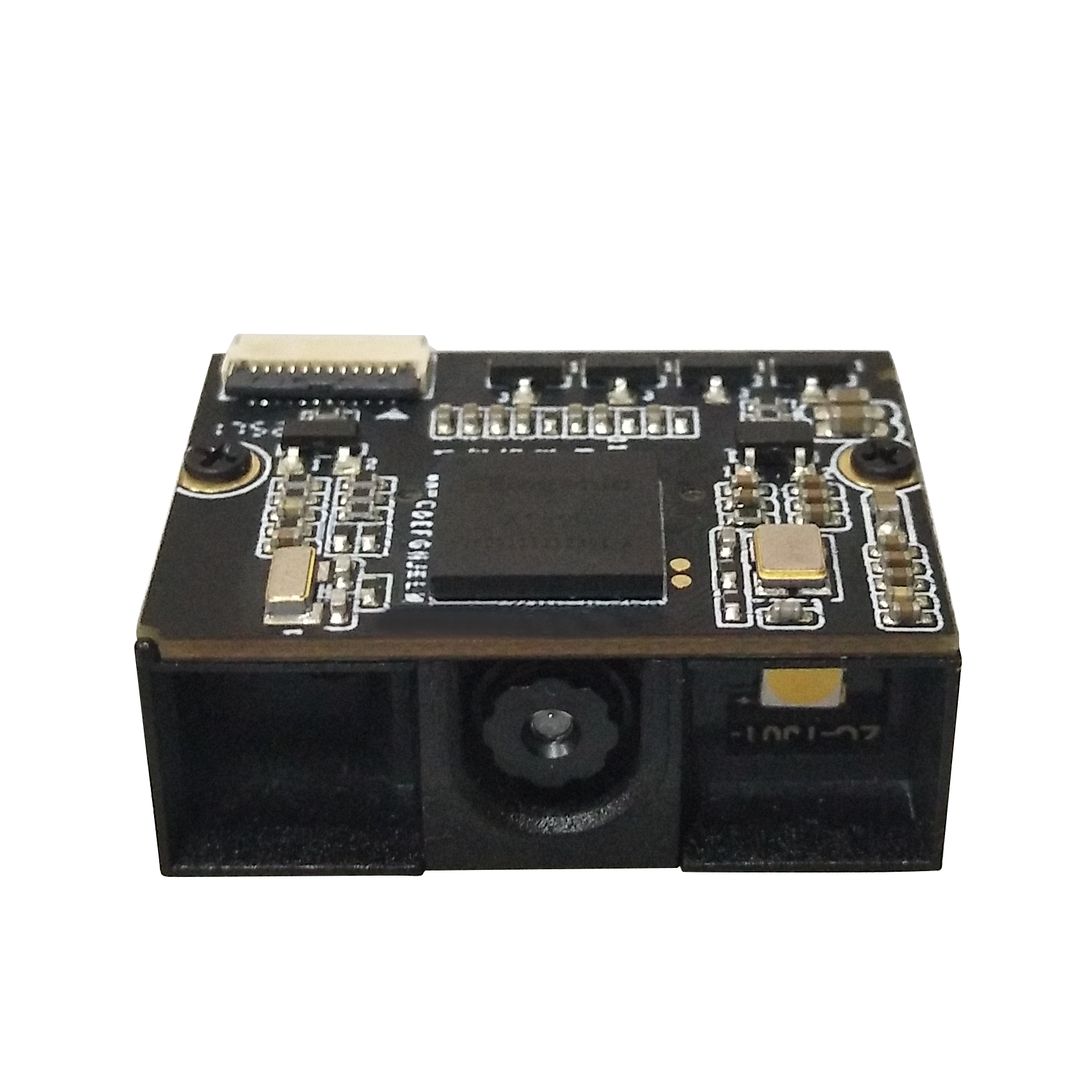

Winson WDI-2010 Mini Size Scanner Module 2D Code Scanner Modul OEM Scan Engine
|
Technical Parameters |
|
|
Electrical Characteristics |
|
|
Interface |
TTL-232/USB |
|
Interface connector |
0.5-12P FPC |
|
Voltage requirement |
DC 3.3V±5% |
|
Current consumption |
Max:100mA |
|
Optical Characteristics |
|
|
Photo sensor |
CMOS array sensor |
|
Sensor resolution |
648X488 pixels |
|
Light source |
white LED*1 |
|
Aim light source |
Red Bar LED |
|
Performance Characteristics |
|
|
Decode angle |
Pitch angle:±65° Skew angle:±60° Tilt angle:±180° |
|
Min resolution |
1D:5mil(0.127mm) |
|
Min.PCS value |
>20%UPC/EAN 13(13mil)
|
|
Field of View |
40°(H),29°(V)
|
|
Language |
multiple languages |
|
Identification |
1D:UPC/EAN,Code 128, Code 39, Code 93, Interleaved 2 of 5, Codabar, 2D:QR,Mirco QR,PDF417 ,Mirco
PDF417,Data Matrix,Aztec
|
|
Physical Characteristics |
|
|
Dimension |
28mm x 20mm x 10.5mm(L*W*H)
|
|
Weight |
5g
|
|
Configurations |
Decode |
|
Environmental Characteristics |
|
|
Temp |
-20° - 50° |
|
Humidity |
5 - 95% (operation) ) 5 - 95% (storage) |
|
Ambient light |
fluorescent light 1600 Lux max, direct sun light 80,000 lx max |
|
Shock drop test |
1.2m drop onto concrete surface |
|
Regulatory |
|
|
Electrical safety |
UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed, EN60950-1/IEC60950-1 2nd ed. |
|
MI/RFI |
FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, EN55024 |
|
Environmental |
RoHS |
