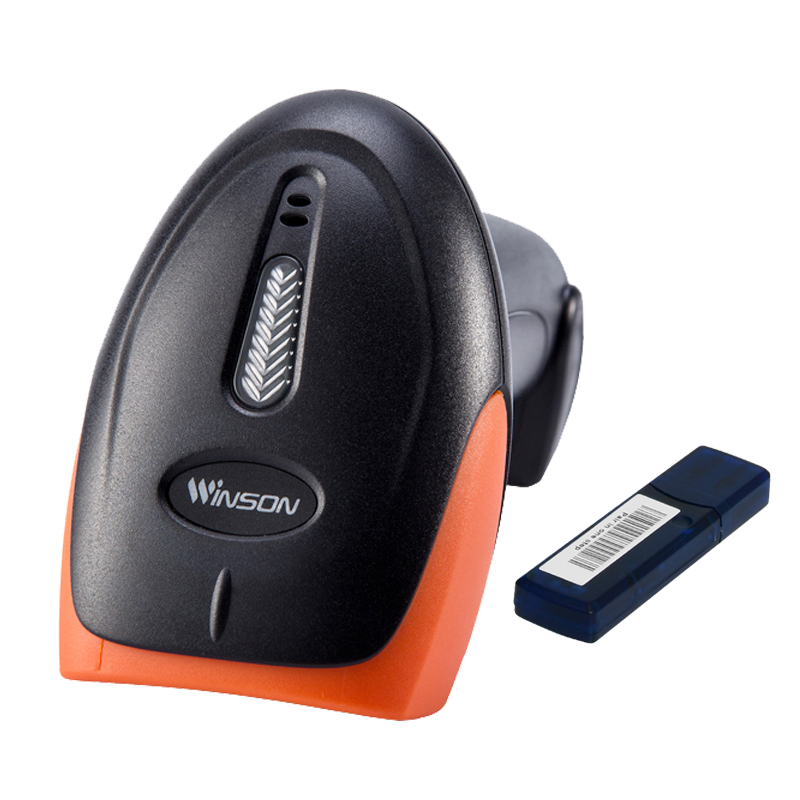

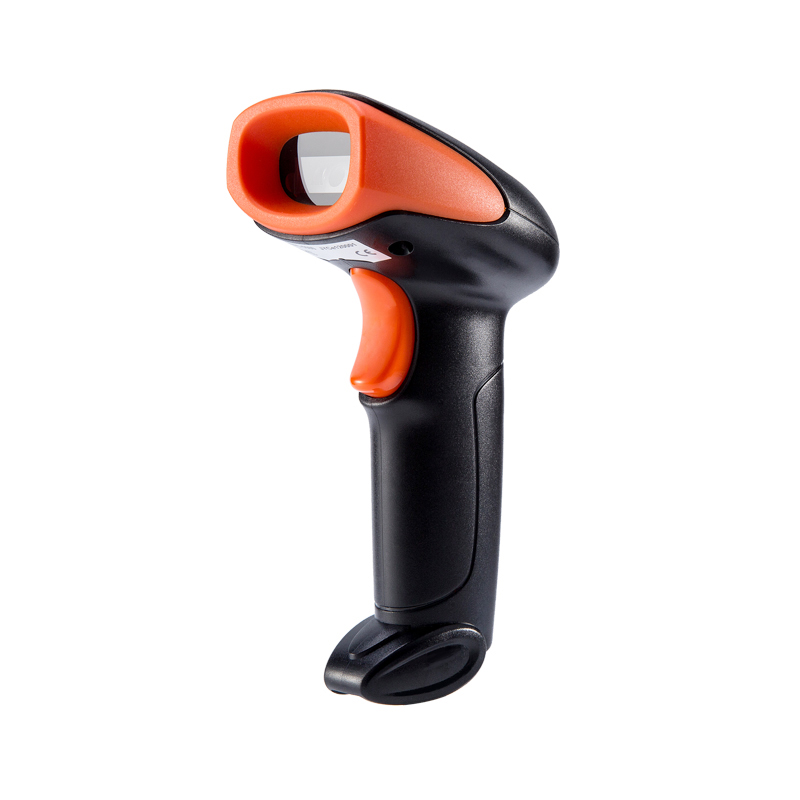

Model No.: WNC-5083/V
Certification: Ce, Rohs
product status: Stock
Types of: Barcode Scanner
Scanning element type: Ccd
Color point: 32 Bit
Interface Type: Usb, usb, RS-232
place of origin: China
Warranty period (years): 1-Year
After-sales service: Call Center And On-Line Technical Support
Private Mold: Yes
Products Status: Stock
Type: Barcode Scanner
Scan Element Type: Cmos
Colour Depth: 8 Bit
Max Paper Size: N/A
Optical Resolution: 1280X800 pixels
Scan Speed: 350+-50
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Software development kit (SDK): NO
Interface: RS-232/USB HID KEYBOARD/USB VCP
Photo sensor: CMOS array sensor
Voltage requirement: DC5V±5%
Current: Max 180ma
Light Source: White Led
Min resolution: 1D:0.101mm/4mil, 2D:0.178mm/7mil
Min.PCS value: >15%UPC/EAN 13(13mil)
Weight: 180g
Packaging: Brown Box Packing or Customized Packing (Negotiated) 1pcs/box, 20/50pcs/carton
Productivity: 100000
Brand: winson
Transportation: Ocean,Land,Air,Express,Others
Place of Origin: china
Supply Ability: 100000
Certificate: ce
Port: guangzhou
Read barcode as small as 3.3 mill General Purpose Scanners.
|
Technical Specifications |
|
|
Electrical Characteristics |
|
|
Interface Supported |
RS-232/USB HID KEYBOARD/USB VCP |
|
Input Voltage |
DC 5V±10% |
|
Current |
Max:180mA |
|
Optical Characteristics |
|
|
Image Sensor |
CMOS Array Sensor |
|
Sensor Resolution |
640X480 Pixels |
|
Light Source |
White LED |
|
Aim Light Source |
Red Bar LED |
|
Performance Characteristics |
|
|
Scanning Angle |
Pitch angle:±65°;Skew angle:±60°;Tilt angle:±180° |
|
Field of View |
40°(H),29°(V) |
|
Min Resolution |
1D:0.101mm/4mil(PCS 0.9) 2D:0.178mm/7mil(PCS 0.9) |
|
Min .PCS value |
>20% UPC/EAN 13(13mil) |
|
Language |
Multiple Languages |
|
Data Edition |
Support for custom data output |
|
Decode Capability |
1D : UPC/EAN, Code 128, Code 39,Code 93, Interleaved 2 of 5,Codabar, 2D : QR ,Mirco QR,PDF417 ,MircoPDF417,Data Matrix,Aztec |
|
Physical Characteristics |
|
|
Dimensions |
90mm*67mm*168mm(L*W*H) |
|
Weight |
120g |
|
Indicator |
Beeper, LED |
|
Environmental Characteristics |
|
|
Temperature |
-20° to 65°C / -4° to 149°F(operation) /-30° to 70°C /-22° to 158°F(storage) |
|
Humidity |
5 - 90% (operation) ) 5 - 90% (storage) |
|
Ambient Light: |
Up to 80,000 lx |
|
Shock Drop Test |
1.5m drop onto concrete surface |
