Model No.: WNL-1052
Private Mold: Yes
Products Status: Stock

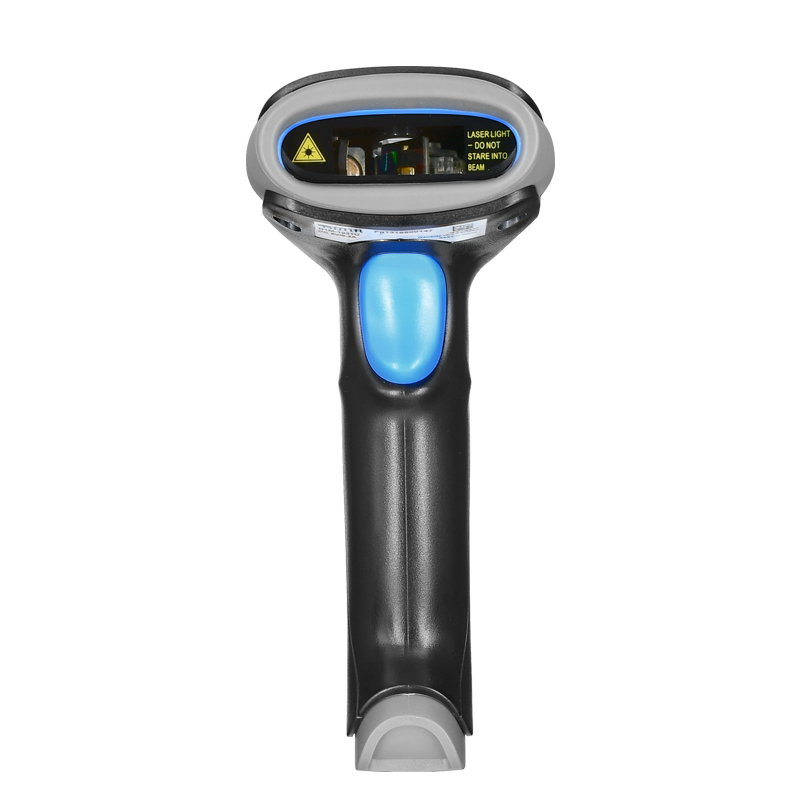

Type: Laser Handheld Barcode Scanner
Scan Element Type: Laser Barcode Scanner
Colour Depth: 32 Bit
Interface Type: Usb, Rs232
Max Paper Size: N/A
Optical Resolution: 1D:4mil
Scan Speed: 250 Scans/sec
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Software development kit (SDK): NO
Color: Black
Interface: USB HID KEYBOARD/USB VCP
Light Source: 650nm Visible Laser Diode
Operating Mode: Cache mode/Inventory mode
Min .PCS value: >30%UPC/EAN 13(13mil)
Mechanical shock: 1.5m drop onto concrete surface
Charging Time: 5h
transmission range: 30m (In empty area)
Packaging: Brown Box Packing or Customized Packing (Negotiated) 1pcs/box, 20/50pcs/carton
Productivity: 100000
Brand: winson
Transportation: Ocean,Land,Air,Express,Others
Place of Origin: china
Supply Ability: 10000 Unit/Units per Week
Certificate: ce
Port: Guangzhou
Versatile: Interfaces such as PS2, RS232, USB, USB-COM, etc. are available General Purpose Barcode Scanner.
The reading distance can be up to 20cm highand the information in the barcode can be read quickly Qr Code Scanner Module.
Compact, lightweight, ergonomically designed and comfortable to feel Barcode Reader Arduino.
|
Wireless Characteristics |
|||||||
|
Communication mode |
Cache mode/Inventory mode |
||||||
|
Communication mode |
2.402 to 2.480GHz |
||||||
|
Transmission range |
30m(In empty area) |
||||||
|
Battery capacity |
2000mAh (Lithium battery) |
||||||
|
Charge Time from Empty to Full Charge |
5H |
||||||
|
Duration of use |
11H (wireless mode,real-time mode communication mode,60 scans/minute) |
||||||
|
Electrical Characteristics |
|||||||
|
Interface Supported |
USB HID KEYBOARD/USB VCP |
||||||
|
Input Voltage |
DC 5V±5% |
||||||
|
Current |
Max:185mA |
||||||
|
Performance Characteristics |
|||||||
|
Light Source |
650nm visible laser diode |
||||||
|
Decoding speed |
100±20/s |
||||||
|
Scanning Angle |
Pitch angle:-30° to 0°,0° to +30° |
||||||
|
|
Skew angle:-60° to 0°,0° to +60° |
||||||
|
|
Tilt angle:-30° to 0°,0° to +30° |
||||||
|
Min Resolution |
1D : 4mils |
||||||
|
Min .PCS value |
>30%UPC/EAN 13(13mil) |
||||||
|
Decode Capability |
1D:EAN13,EAN8,UPC A,UPC E,ISSN, ISBN, UPC-A , UPC-E , CODE39 , CODE32, CODE128, UCC-EAN128, CODE93, CODE11, CODABAR, MSI, CROSS 25 CODE, CHINA POST 25 CODE, MATRIX 25CODE,INDUSTRIAL 25 CODE, GS1 DataBar Omnidirectional, GS1 DataBar Limited |
||||||
|
Environmental Characteristics |
|||||||
|
Temperature |
operation:0°C-50°C |
||||||
|
|
storage:-10°C-60°C |
||||||
|
Humidity |
operation:20%~85% (no condensation) |
||||||
|
|
storage:20%~95%(no condensation) |
||||||
|
Physical Characteristics |
|||||||
|
Dimensions |
90mm x67mm x 168mm(L*W*H) |
||||||
|
Weight |
130g |
||||||
|
Indicator |
Beeper, LED |
||||||
|
Decoding Depth of Field |
|||||||
|
Symbology |
Resolution |
Barcode number |
Barcode width |
Nearest |
Farthest |
||
|
Code128 |
5mil |
20 |
4.3x1.5cm |
5cm |
10cm |
||
|
Code128 |
15mil |
7 |
4.3x1.5cm |
2.5cm |
26cm |
||
|
Code39 |
6.67mil |
16 |
4.4x1.5cm |
3cm |
19cm |
||
|
Code39 |
20mil |
4 |
4.3x1.5cm |
3cm |
32cm |
||
|
EAN13 |
13.34mil |
13 |
4.2x1.5cm |
2cm |
24cm |
||
