Choose The High Quality 2022 Wired 1D Laser Barcode Readers etc.

Model No.: WNL-1051g

Certification: Ce, Other

product status: Stock

Types of: Barcode Scanner

Scanning element type: Ccd

Color point: 32 Bit

Interface Type: Usb, usb, SCSI, IEEE 1394, COM, PS/2

place of origin: China

Warranty period (years): 1-Year

After-sales service: Call Center And On-Line Technical Support

Private Mold: Yes

Products Status: Stock

Type: Laser Scanner

Scan Element Type: 1D Laser Scanner Gun

Colour Depth: 32 Bit

Max Paper Size: A4 Size

Optical Resolution: 1D:4mils

Scan Speed: 100±20 scans/second

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software development kit (SDK): NO

Product Type: 1D Laser Scanner Gun

Interface: USB HID KEYBOARD/USB VCP/RS-232

Voltage requirement: DC 5V±5%

Light Source: 650 Nm Visible Laser Diode

Min .PCS value: >30%UPC/EAN 13(13mil)

Dimensions: 90mm x67mm x 168mm(L*W*H)

Weight: 130g

Shock drop test: 1.5m drop onto concrete surface

winson company

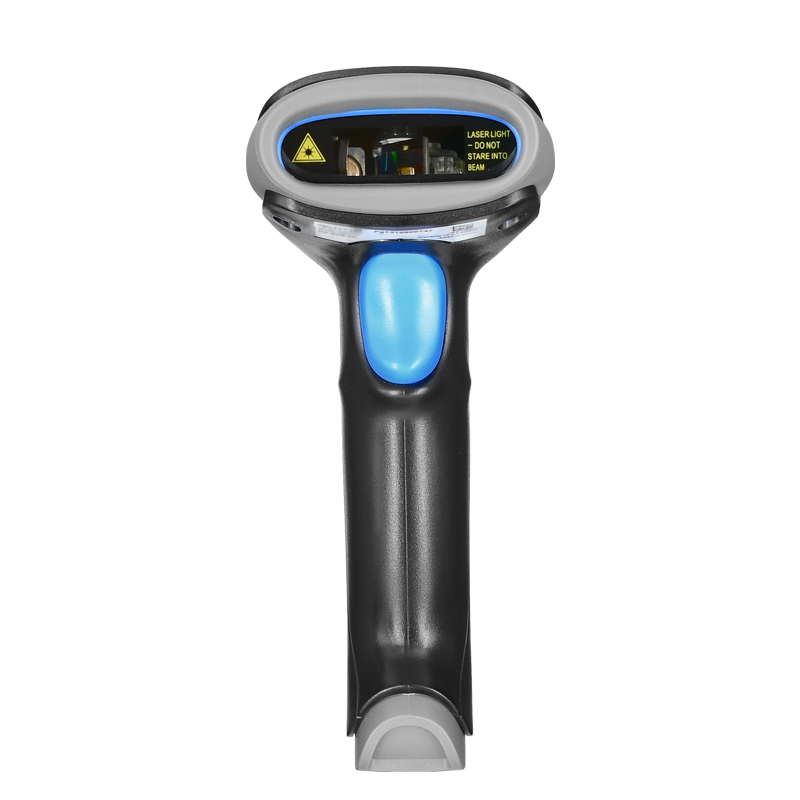

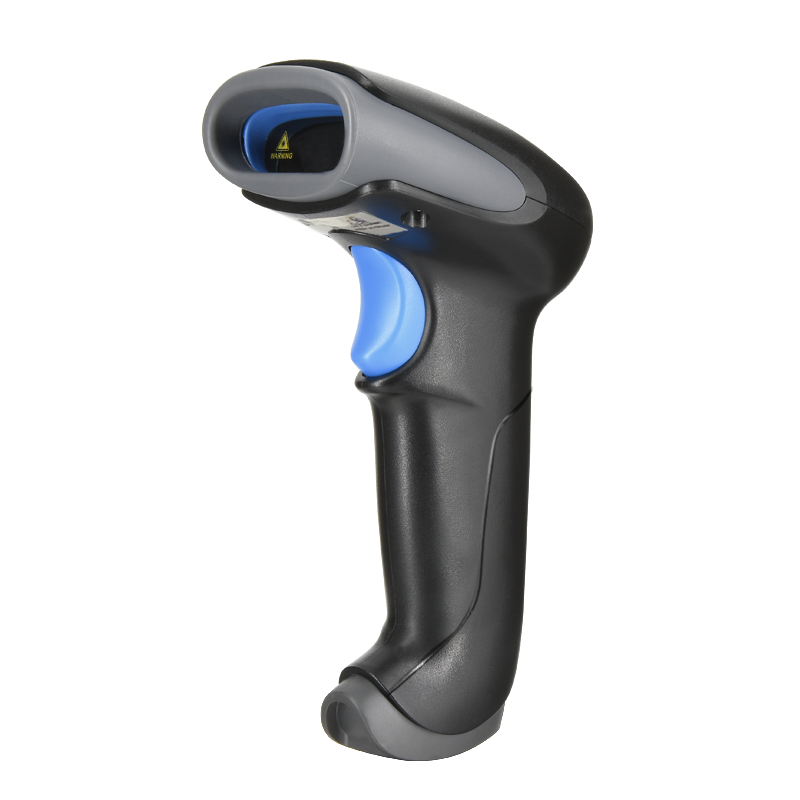

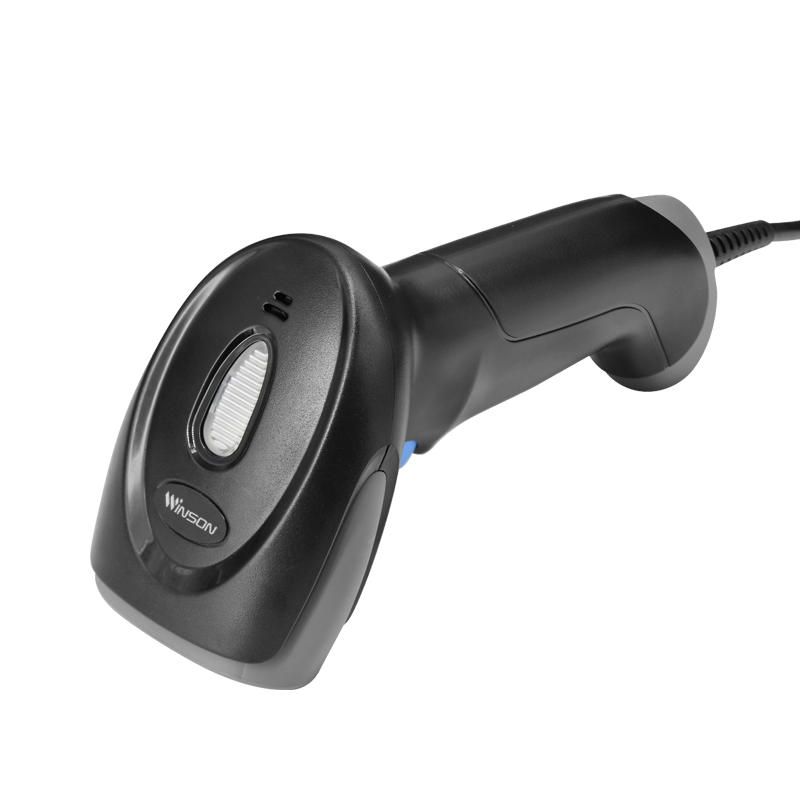

Winson 2022 New Product Wired 1D Laser Barcode Readers Handheld ccd scanner Gun

1.Cost-effective, Superior Performance Handheld Scanner;
2.Exquisite Design, Good Applicability 2d Cmos Barcode Scanner;
3.Appearance of Smooth, Comfortable Nature Barcode Scanner Module;
4.Support RS232/USB, Barcode Reading Fluently 1d Barcode Module;
5.Winson barcode scanners support multiple keyboard language: USA, Germany, French, Italy, Spanish, Turkey, Belgium, Brazil Czech and so on.

1d Barcode Module

Better scanning performance

32-bit CPU, scanning code speed up to 120 scans per second.

Support a variety of codes
1D barcode can be read under direct sunlight, high-speed scanning.

Plug and play

Plug and play, no need to manually install the driver

(for USB HID KEYBOARD, USB VCP (Windows10

below USBVCP need to install the driver)).

Compatibility

Compatible with the current system used by the general public, such as Windows, Android, Mac OS, IOS, Linux, and so on.

1d Barcode Module

winson company

Product Detail

Electrical Characteristics
Interface Supported		USB HID KEYBOARD/USB VCP or RS-232
Input Voltage		DC 5V±5%
Current		Max:185mA
Performance Characteristics
Light Source		650nm visible laser diode
Decoding speed		100±20/s
Scanning Angle		Pitch angle:-30° to 0°,0° to +30°
		Skew angle:-60° to 0°,0° to +60°
		Tilt angle:-30° to 0°,0° to +30°
Min Resolution		1D : 4mils
Min .PCS value		>30%UPC/EAN 13(13mil)
Decode Capability		1D:EAN13,EAN8,UPC A,UPC E,ISSN, ISBN, UPC-A , UPC-E , CODE39 , CODE32, CODE128, UCC-EAN128, CODE93, CODE11, CODABAR, MSI, CROSS 25 CODE, CHINA POST 25 CODE, MATRIX 25CODE,INDUSTRIAL 25 CODE, GS1 DataBar Omnidirectional, GS1 DataBar Limited
Environmental Characteristics
Temperature		operation:0°C-50°C
		storage:-10°C-60°C
Humidity		operation:20%~85% (no condensation)
		storage:20%~95%(no condensation)
Physical Characteristics
Dimensions		90mm x67mm x 168mm(LWH)
Weight		130g
Indicator		Beeper, LED
Decoding Depth of Field
Symbology	Resolution		Barcode number	Barcode width	Nearest	Farthest
Code128	5mil		20	4.3x1.5cm	5cm	10cm
Code128	15mil		7	4.3x1.5cm	2.5cm	26cm
Code39	6.67mil		16	4.4x1.5cm	3cm	19cm
Code39	20mil		4	4.3x1.5cm	3cm	32cm
EAN13	13.34mil		13	4.2x1.5cm	2cm	24cm
