Choose The High Quality Portable Long Range Wired Barcode Scanner etc.

Model No.: WNI-5010g

Certification: Ce

product status: Stock

Types of: Barcode Scanner

Scanning element type: Ccd, Cmos

Color point: 32 Bit

Interface Type: Usb, usb, PS/2, rs232/485

place of origin: China

Warranty period (years): 1-Year

After-sales service: Onsite Training And Inspection

Products Status: Stock

Type: Portable Scanner

Scan Element Type: Cmos

Colour Depth: 32 Bit

Max Paper Size: N/A

Optical Resolution: 640X480 pixels

Scan Speed: Up to 30fps

Brand Name: Winson

Place Of Origin: Guangdong, China

Voltage/Current: DC 5V+-10%; Max 120ma

Sensor resolution: 648*480 pixels

Interface: USB HID KEYBOARD / USB VCP

Photo sensor: CMOS array sensor

Aim light source: Red Bar LED

Light Source: White LED*1

Min .Resolution: 1D:5mil(0.127mm) 2D:13mil(0.33mm)

Min.PCS value: >15%UPC/EAN 13(13mil)

Dimensions (L*W*H): 67mm * 97mm * 165 mm

Weight: 122.8g

winson company

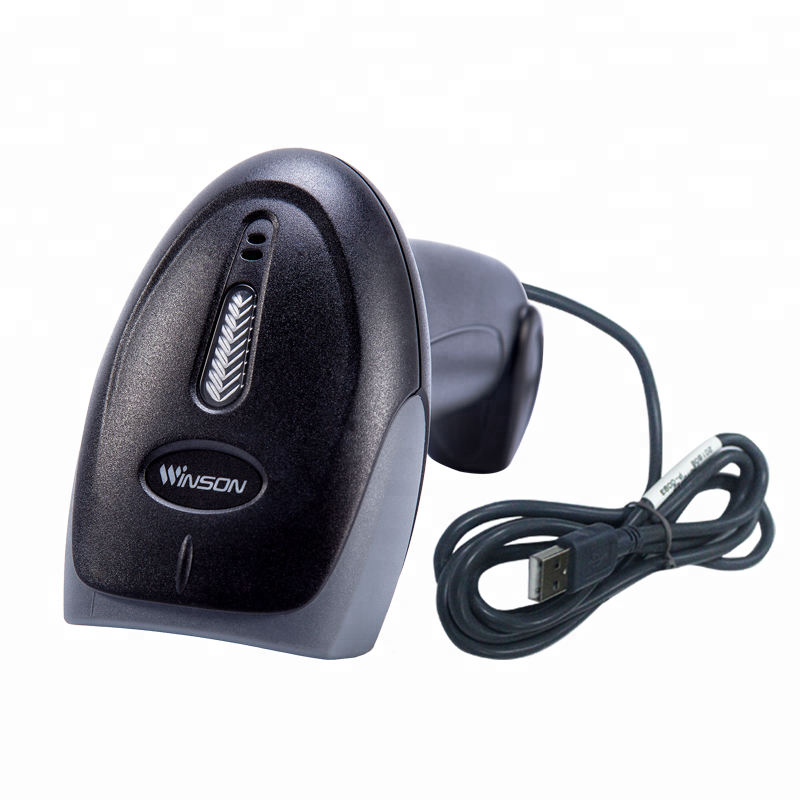

WNI-5010g ,Mobile Computers Portable Long Range Wired 2D Barcode Scanner plug and play Barcode Reader wide angle reading

2 colors available: (1) black+blue (2) black+orange

barcode scanner

Superior reading performance 32-bit CPU,Winson barcode scanner is reading in high efficient, precise and sensitive. Support a variety of codes Readable mobile phone, computer screen or the surface attached to water, ice 1D and 2D bar code (fuzzy bar code).


Plug and play General Purpose Barcode Scanner Plug and play, no need to manually install the driver (for USB HID KEYBOARD, USB VCP (Windows10 below USB VCP need to install the driver)).	Compatibility Ccd Barcode Scanner Compatible with the current system used by the general public, such as Windows, Android, Mac OS, IOS, Linux, and so on.

barcode scanner

barcode scanner winson company

Product Detail

1.Superior decoding performance:
High resolution:648x488 ,Low decoding error rate can help to improve your working efficiency.

2.Perfect process design and ultimate experience:
Winson WNI-5010g uses imported ABS material, high quality rubber is a good buffer against impact. Nice design makes it different and popular. It applies to cashier for mobile payment and Logistics & Express.

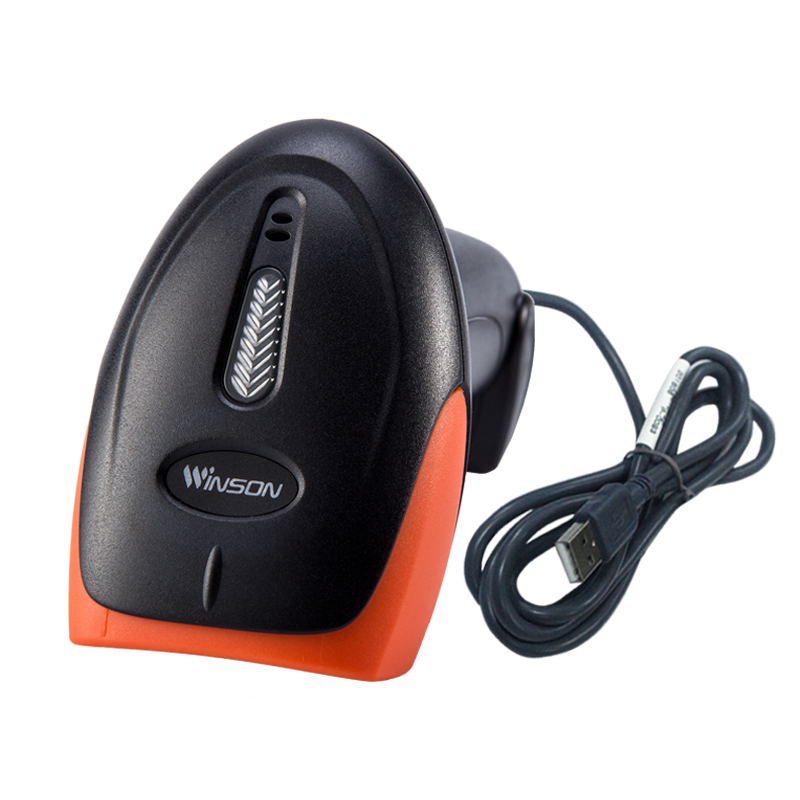

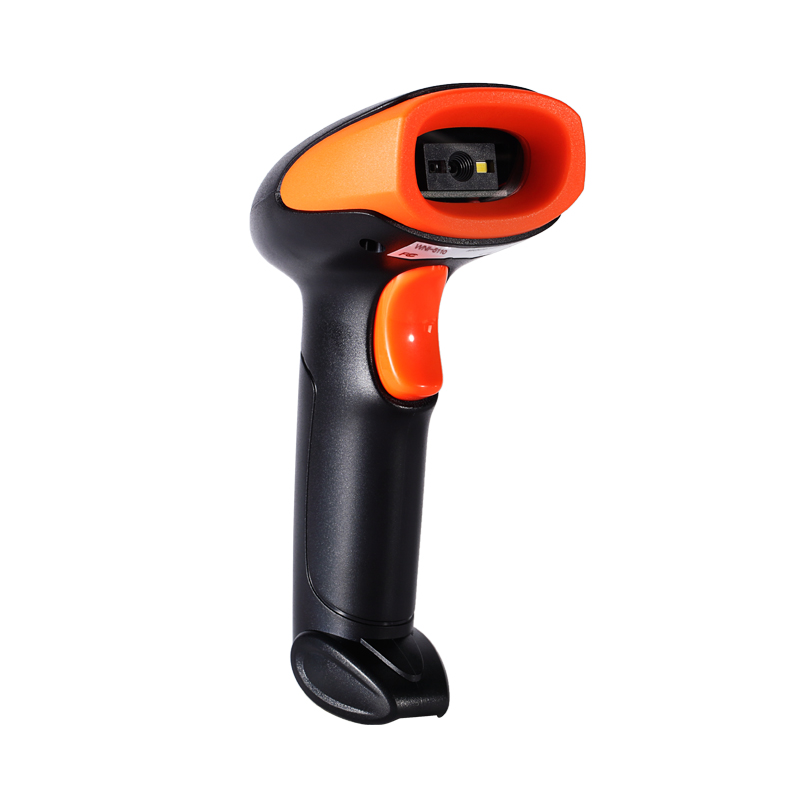

3.2 colors available: (1) black+blue (2) black+orange

Technical Parameters
Electrical Characteristics
Interface	USB HID KEYBOARD/USB VCP
Voltage requirement	5VDC±10%
Current consumption	Max:120mA
Optical Characteristics
Photo sensor	CMOS array sensor
SENSOR RESOLUTION	648X488 pixels
light source	white LED*1
Aim light source	Red Bar led
Performance Characteristics
Decode angle	Pitch angle:±65° Skew angle:±60° Tilt angle:±180°
Min resolution	1D:5mil(0.127)
Min.PCS value	>30%UPC/EAN 13(13mil)
Language	multiple languages
Field of View	34°(H),26°(V)
Identification	1D:UPC/EAN,Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI,GS1 Databar 2D:QR, PDF417,Data Matrix
Physical Characteristics
Dimensions	97 mm H x67 mm W x165 mm D
Weight	122.8g
Environmental Characteristics
Temp	-20°to 60°C / -4°-140°F((operation) ) -40°-to 80°C /-40°-176°F(storage)
Humidity	5 - 95% (operation) ) 5 - 95% (storage)
Shock drop test	1.2m drop onto concrete surface
Ambient Light:	fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
Regulatory
Electrical Safety	UL 60950,EN/IEC 60950
EMI/RFI	FCC Part 15 Class B,EN 55024/CISPR 22
Environmental	RoHS
