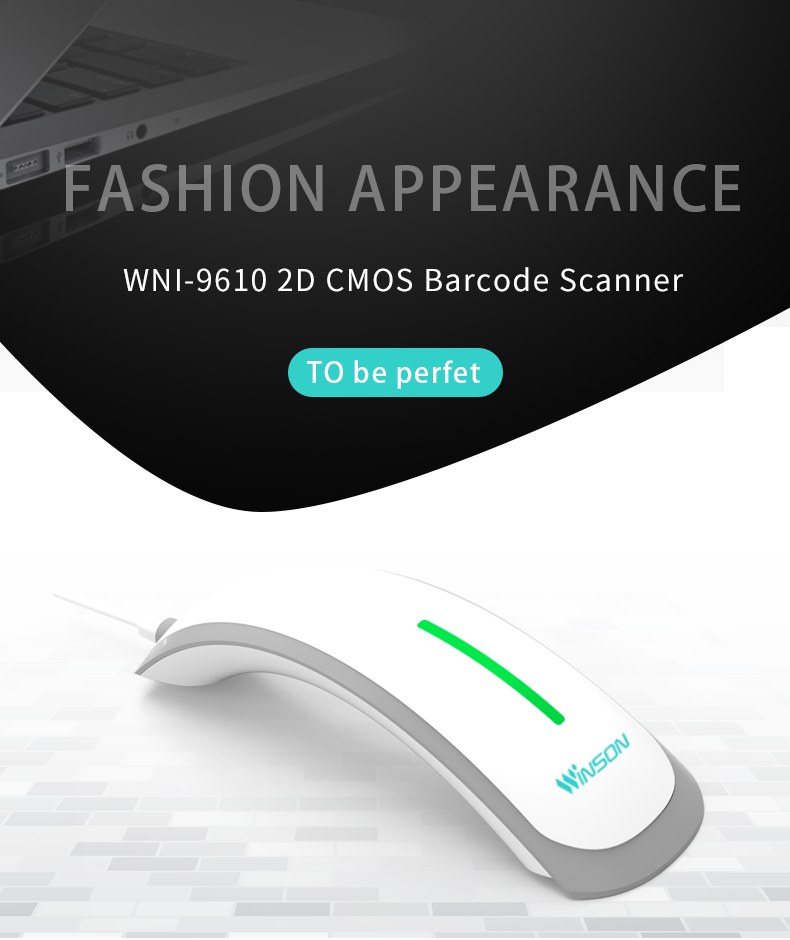

Model No.: WNI-9610
Certification: Ce, Ce
product status: Stock
Types of: Barcode Scanner
Scanning element type: Ccd
Color point: 32 Bit
Interface Type: Usb, Usb, Rs232
place of origin: China
Warranty period (years): 1-Year
After-sales service: Call Center And On-Line Technical Support
Products Status: Stock
Type: Barcode Scanner
Scan Element Type: Cmos
Colour Depth: 16 Bit
Max Paper Size: N/A
Optical Resolution: 640X480 pixels
Scan Speed: 60
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Interface Supported: USB HID KEYBOARD/USB VCP or RS-232
Input Voltage: DC 5V±10%
Current: 32a / 63a / 80a / 100a
Image Sensor: CMOS Array Sensor
Sensor resolution: 640X480 Pixels
Light Source: White Led
Min resolution: SR:0.127/5mil(PCS 0.9)
Packaging: Customized Packing (Negotiated)
Productivity: 100000
Brand: winson
Transportation: Ocean,Land,Air,Express,Others
Place of Origin: china
Supply Ability: 100000
Certificate: ce
Port: guangzhou
|
Technical Parameters |
|
|
Electrical Characteristics |
|
|

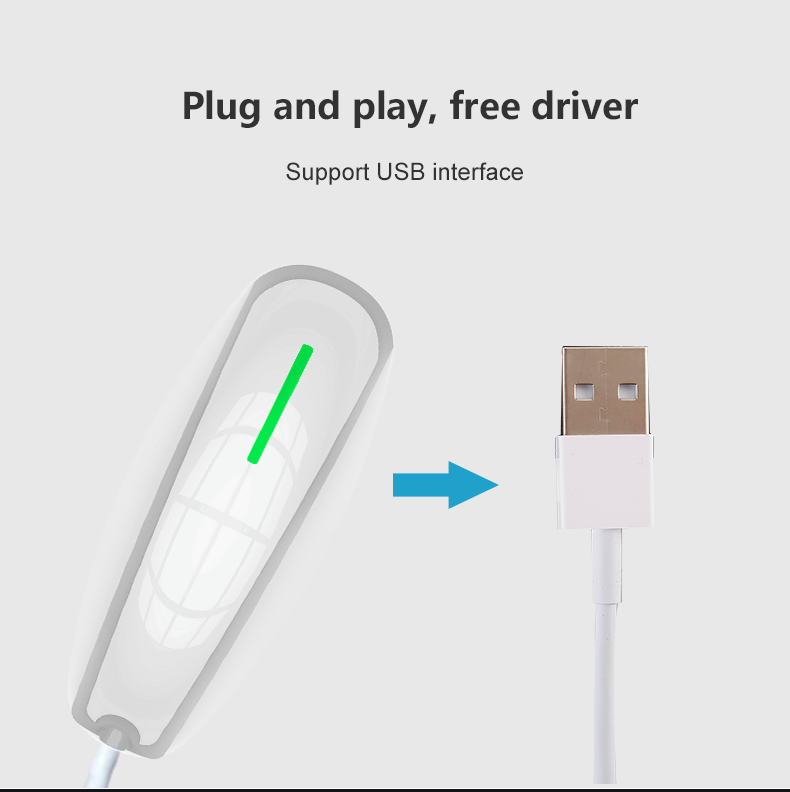

Interface |
RS-232/USB HID KEYBOARD/USB VCP |
|
Voltage requirement |
DC5V±10% |
|
Current consumption |
Max :500mA |
|
Optical Characteristics |
|
|
Photo sensor |
CMOS linear sensor |
|
Sensor Resolution |
640X480 Pixels |
|
Light source |
625nm Red Bar LED |
|
Performance Characteristics |
|
|
Scan Rate |
60FPS |
|
Decode angle |
Pitch angle:±50° Skew angle::±50° Tilt angle:±180° |
|
Min resolution |
0.076mm/3mil(PCS 0.9) |
|
Min.PCS value |
>30%UPC/EAN 13(13mil) |
|
Curvature |
R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9) |
|
Language |
Multiple languages |
|
1/500W |
|
|
Identification |
1D: Code128,UCC/EAN-128,AIM128,EAN-8,EAN-13,ISBN/ISSN,UPC-E,UPC-A,Interleaved 2 of 5,ITF-6,ITF-4,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5,Code39,Codabar,Code93,Code11,Plessey,MSI-Plessey,RSS-14,RSS-Limited,RSS-Expand 2D:QR ,PDF417 ,Data Matrix |
|
Physical Characteristics |
|
|

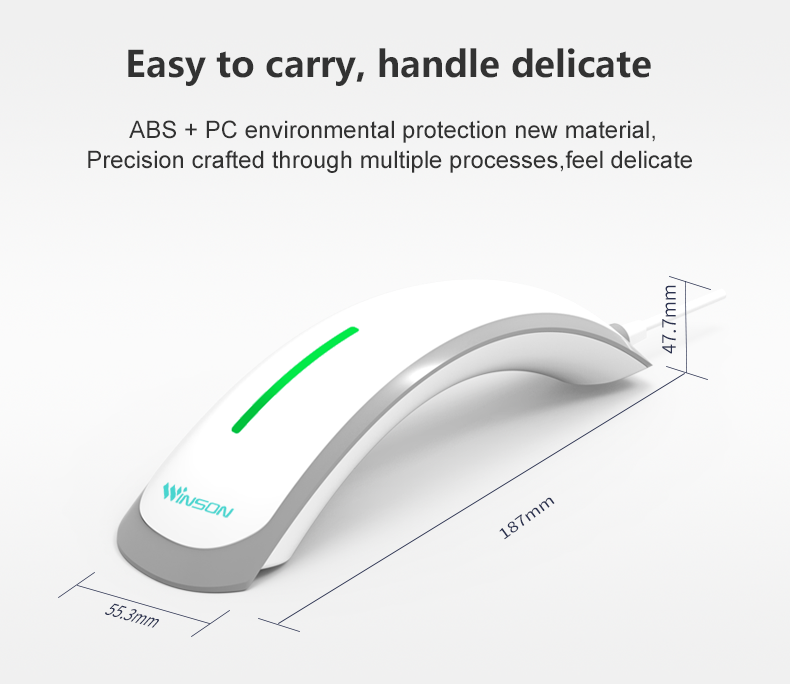

Dimensions |
55.3mm×47.7mm×187mm(L x W x H) |
|
Weight |
120g |
|
Environmental Characteristics |
|
|
Temp |
-20°-65°C / -4°to 149°F((operation) ) -30°- 70°C /-22°to 158°F(storage) |
|
Humidity |
5 - 90% (operation) ) 5 - 90% (storage) |
|
Ambient Light |
Fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max |
|
Shock drop test |
1.5m drop onto concrete surface |
