Model No.: WDC-2500
Certification: Ce
product status: Stock
Types of: Barcode Scanner
Scanning element type: Ccd, Cmos
Color point: 32 Bit
Interface Type: Usb, usb, TTL/RS232
place of origin: China
Warranty period (years): 1-Year
After-sales service: Call Center And On-Line Technical Support
Private Mold: Yes
Products Status: Stock
Type: CCD Code Reader Module
Scan Element Type: Ccd
Colour Depth: 32 Bit
Max Paper Size: N/A
Optical Resolution: 2500pix
Scan Speed: 350±50 (scans/second)
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Color: Black
Product Type: OEM Barcode Scan Module
Interface: TTL-232/USB
Photo sensor: CCD linear sensor
Voltage requirement: DC 5V±10%
Current Consumption: Max:120mA
Configurations: Decode
Shock drop test: 1.2m drop onto concrete surface
Dimensions: 30 mm x 26 mm x 12 mm(W x D x H)
Weight: 8g
Packaging: Customized Packing (Negotiated)
Productivity: 100000
Brand: winson
Transportation: Ocean,Land,Air,Express,Others
Place of Origin: china
Supply Ability: 1000 Unit/Units per Day
Certificate: ce
Port: Guangzhou/Shenzhen

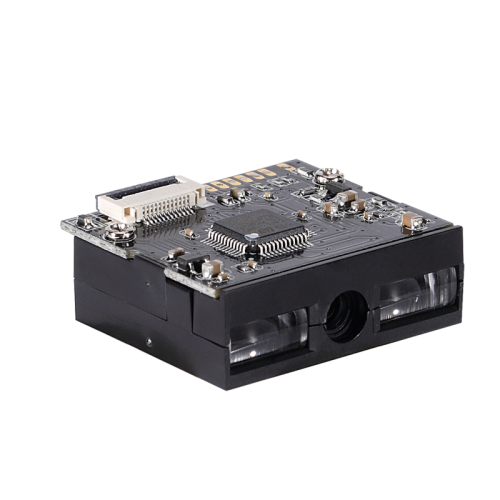

Excellent Quality CCD Bar Code Reader Portable 1D OEM Scan Engine
| 1.Arduino 2d Barcode Scanner Winson WDC2509 Kiosk CCD Code Reader Module OEM Barcode Scan Module Small. |
| 2.Qr Scanner Module Support flash-upgradeable for customer inquiry. |
| 3.Handheld Scanner Mini size and lightweight easy to embed various scanning devices. |
|

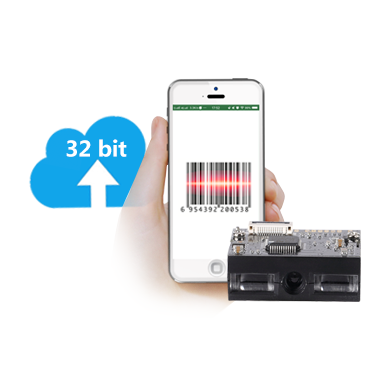

Better scanning performance 32-bit CPU, scanning code speed up to 350 scans per second.
Support bidirectional scanning Accurate scanning, the error rate is 1 / 5,000,000. |
|
|
|
|
|
|
Compatibility
Compatible with the current system used by the general public, such as Windows,Android, Mac OS,IOS,Linux,and so on.
|
Mechanical Shock After 1.0m drop onto concrete surface, still work as usual,shockproof and Anti-broken.
|
|
Technical parameters |
|
|
Electrical Characteristics |
|
|

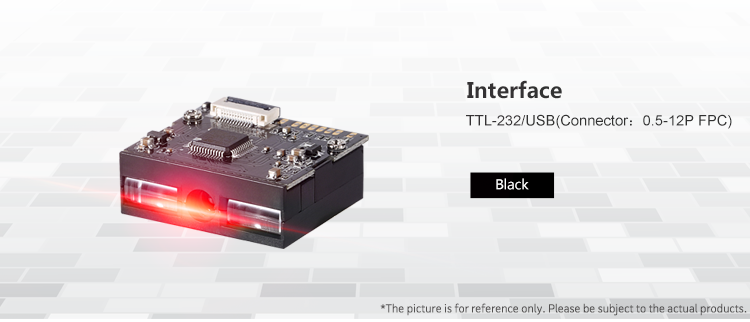

Interface |
TTL-232/USB |
|
Interface connector |
0.5-12P FPC |
|
Voltage requirement |
DC 3.3/5V±10% |
|
Current consumption |
Max:120mA |
|
Optical Characteristics |
|
|
Photo sensor |
CCD linear sensor |
|
Sensor Resolution |
2500pix |
|
light source |
632nm red led |
|
Performance Characteristics |
|
|
Scan Rate |
350±50 (scans/second) |
|
Decode angle |
Pitch angle:±30° Skew angle:±70° Tilt angle:±45° |
|
Min resolution |
0.127mm/5mil(PCS 0.9) |
|
Min.PCS value |
>20%UPC/EAN 13(13mil) |
|
Curvature |
R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9) |
|

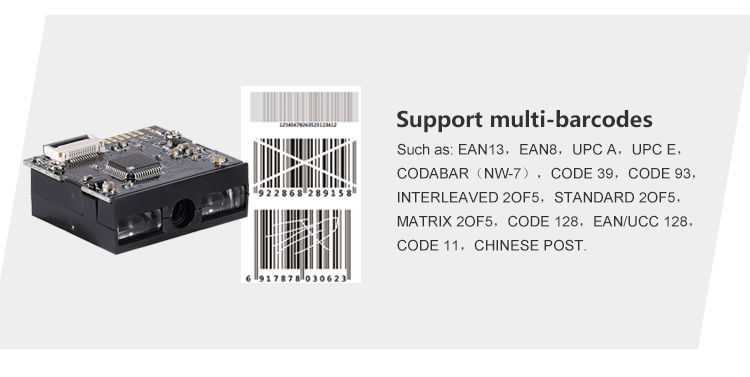

Identification |
EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST |
|
Regulatory |
|
|
Electrical Safety |
UL 60950,EN/IEC 60950 |
|
EMI/RFI |
FCC Part 15 Class B,EN 55024/CISPR 22 |
|
Environmental |
RoHS |
|
Physical Characteristics |
|
|
Dimensions |
30mm*26 mm*12mm(L*W*H) |
|
Weight |
8g |
|
Configurations |
Decode |
|
Environmental Characteristics |
|
|
Temp |
-10°-65°C / 32°-149°F(operation) -30°- 70°C /-22°-158°F(storage) |
|
Humidity |
5 - 90% (operation) 5 - 90% (storage) |
|
Ambient Light |
Fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max |
|
Shock drop test |
1.2m drop onto concrete surface |
