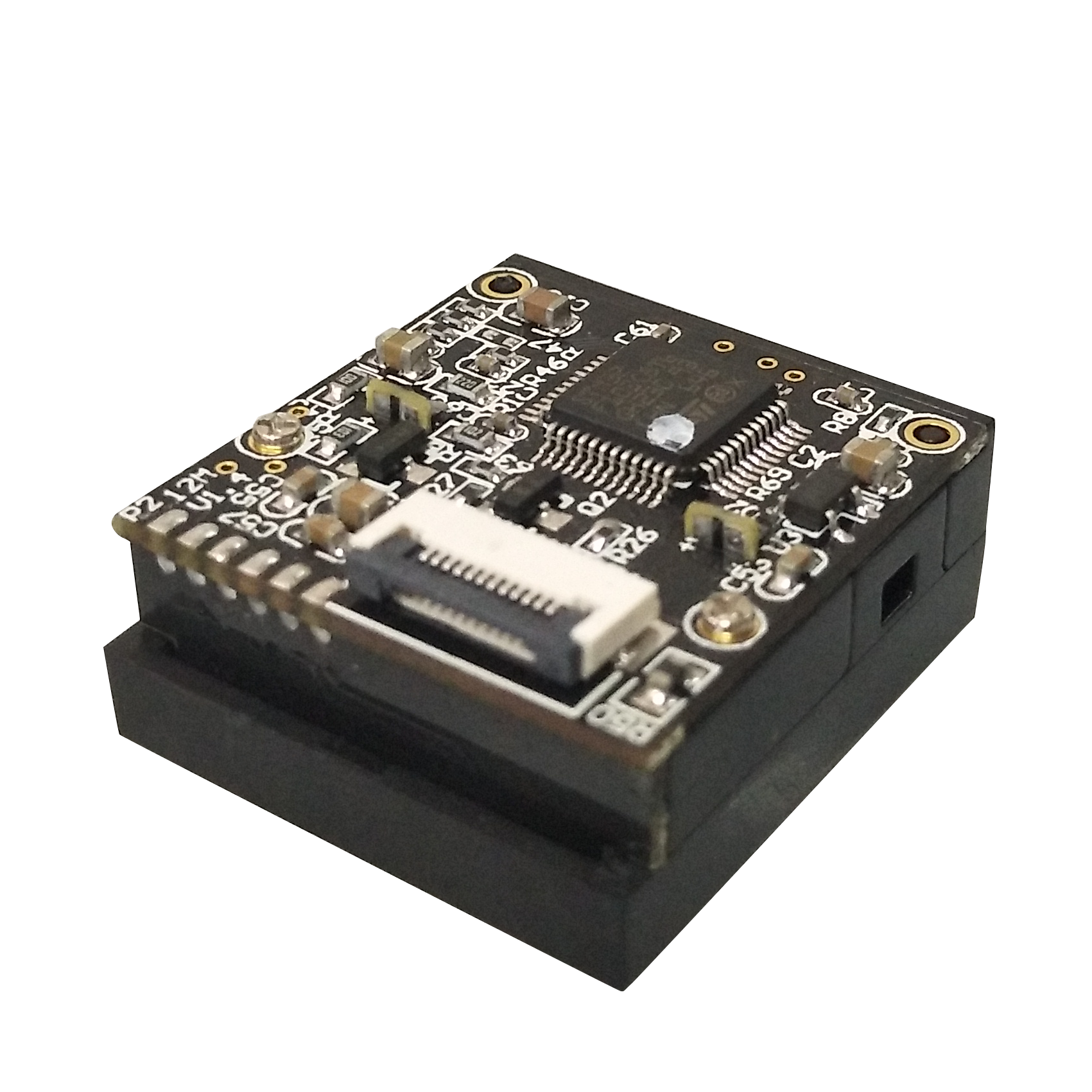

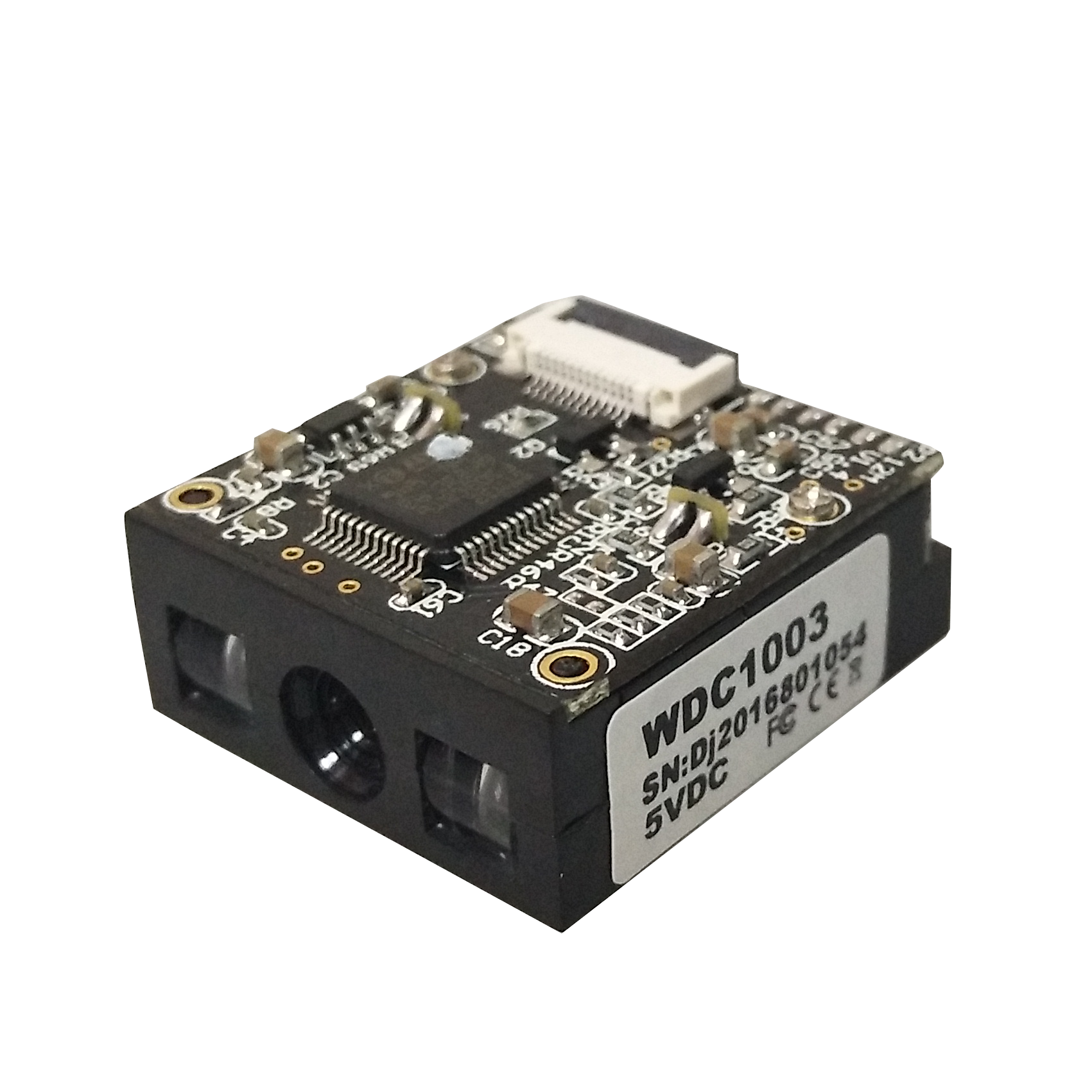

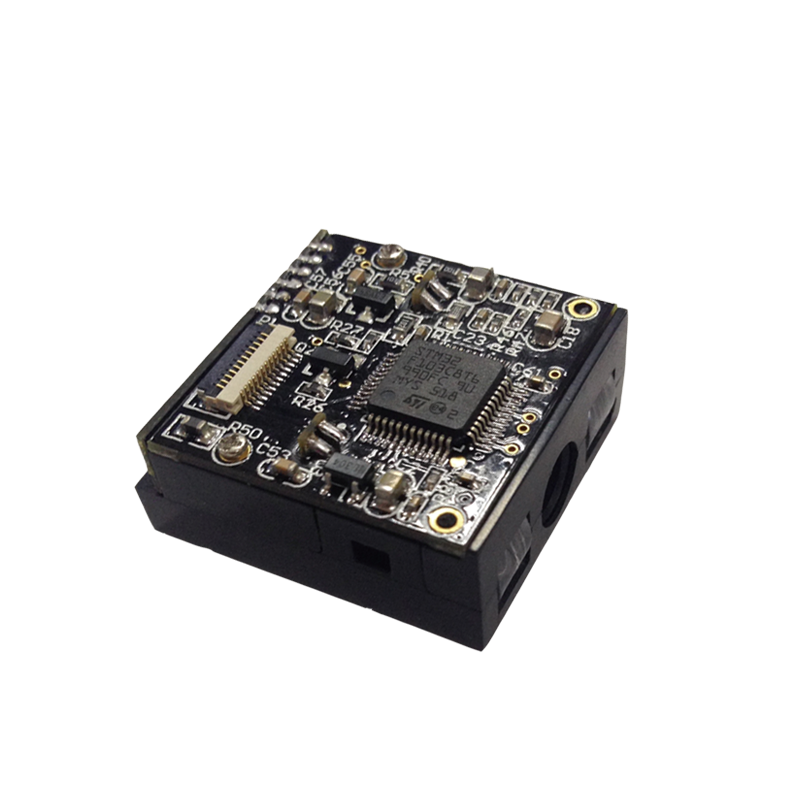

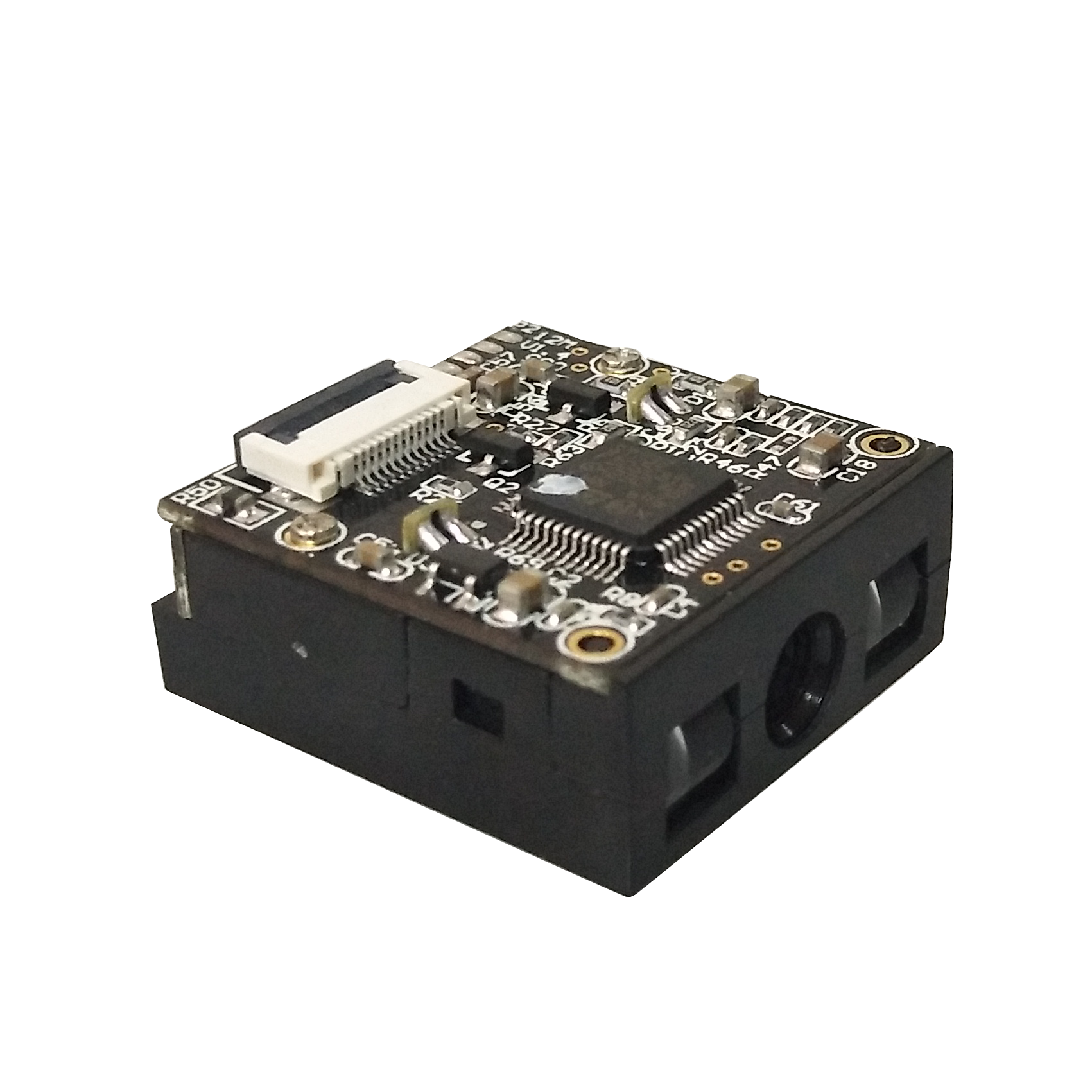

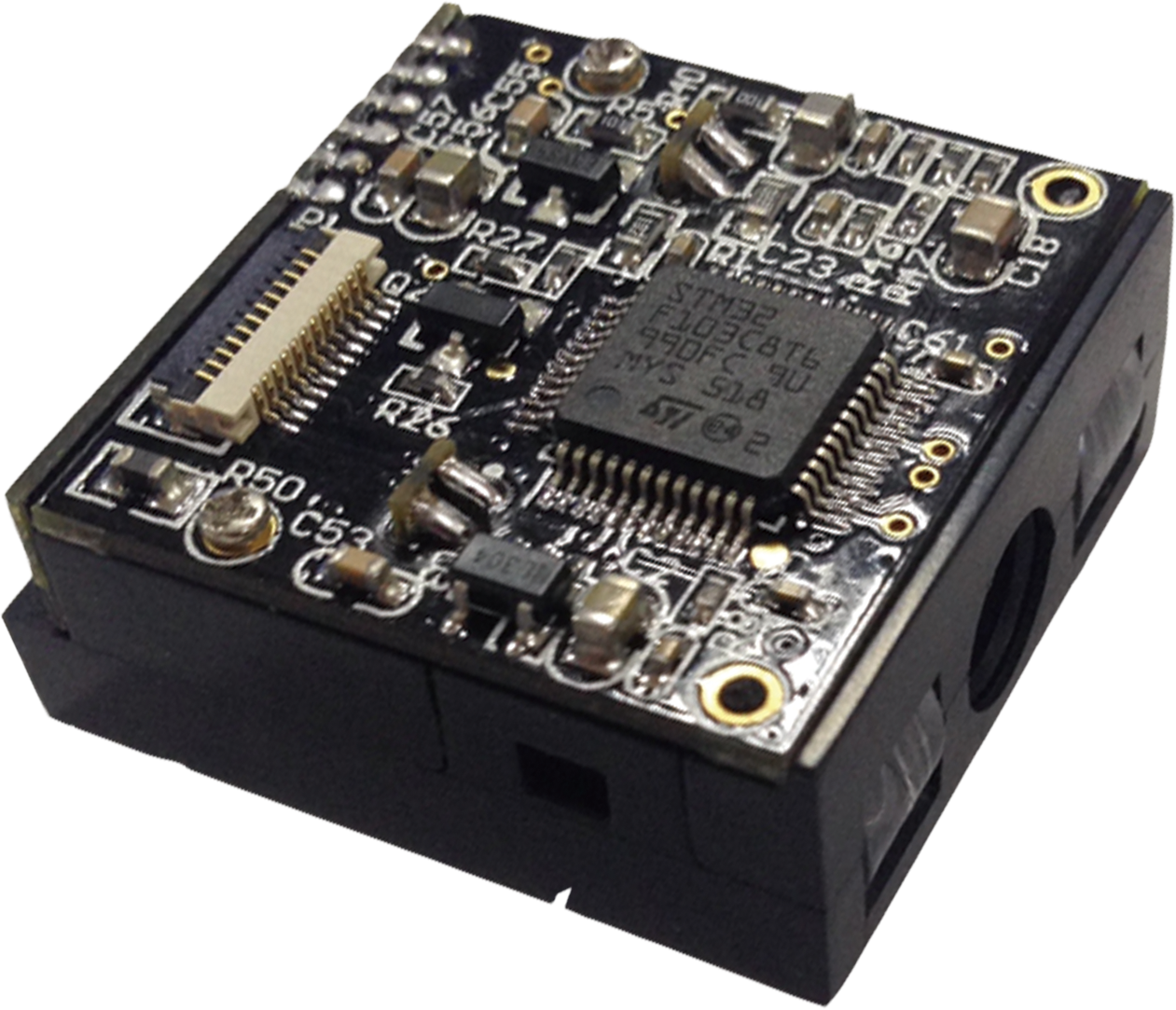

Choose The High Quality barcode scanner 1D barcode scanner engine etc.

Model No.: WDC-1003

Certification: Ce, Ce

product status: Stock

Types of: Barcode Scanner

Scanning element type: Ccd, Cmos

Color point: 32 Bit

Interface Type: Usb, Usb, Rs232

place of origin: China

Warranty period (years): 1-Year

After-sales service: Call Center And On-Line Technical Support

Private Mold: Yes

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 32 Bit

Max Paper Size: N/A

Optical Resolution: 1280X800 Pix

Scan Speed: 350+-50 Scans/second

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 2-Year

After-sales Service: Call Center And On-Line Technical Support

Compatibility: Win OS/Max OS/Linux/Android/IOS/Embedded OS

Interface: RS-232/USB HID KEYBOARD/USB VCP

Light Source: 650nm Visible Laser Diode

Voltage requirement: DC5V±10% ; Max 260ma

Decode Capabilities: both 1D and 2D

Scan Angle: Pitch angle:±50° Skew angle:±50° Tilt angle:±180°

Min resolution: SR:0.127/5mil(PCS 0.9) HD 3mil(0.076mm)

Min PCS value: >25%UPC/EAN 13(13mil)

Dimensions: 42 mm H x 40 mm W x 32 mm D

General Purpose Scanners Scanner reads 2D & 1D barcodes printed on labels or displayed on device screens.

Scanner Module Can be customized according to customer demand.

Oem Scan Module Supports Continuous/Auto-Induction , 2modes for option.

Small Barcode Engine upport secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.

Product Description

Specification

Interface	TTL-232/USB
Interface connector	0.5-12P FPC
Voltage requirement	DC 3.3/5V±10%
Current consump	Max:120mA
Photo sensor	CCD linear sensor
Sensor Resolution	2500pix
light source	LED 632nm red led
Scan Rate:	350±50 (scans/second)
