Choose The High Quality Embedded in Kiosk CMOS Scan Engine 1D 2D etc.

Model No.: Z4S-320

Certification: Ce, Fcc, Ce, Rech

product status: Stock

Types of: Barcode Scanner

Scanning element type: Ccd, Cmos, Cis

Color point: 32 Bit

Interface Type: Usb, usb, TTL-232

place of origin: China

Warranty period (years): 1-Year

After-sales service: Call Center And On-Line Technical Support

Products Status: Stock

Type: Barcode Scanner

Scan Element Type: Cmos

Colour Depth: 32 Bit

Max Paper Size: N/A

Optical Resolution: 640*480 pix

Scan Speed: 350±50 (scans/second)

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Product Name: embedded in Barcode scan Module

Connector: 0.5-12P FPC

Interface: TTL-232/USB

Photo sensor: CMOS array sensor

Voltage / Current: DC 5V ±5%; Max 135ma

Sensor resolution: 640*480 pixels

Min PCS value: >25%UPC/EAN 13(13mil)

Compatibility: Win OS/Mac OS/Linux/Android/IOS/Embedded OS

Dimensions (W X D X H): 65mm x 61.2mm x 35.5mm

Weight: 28.7g

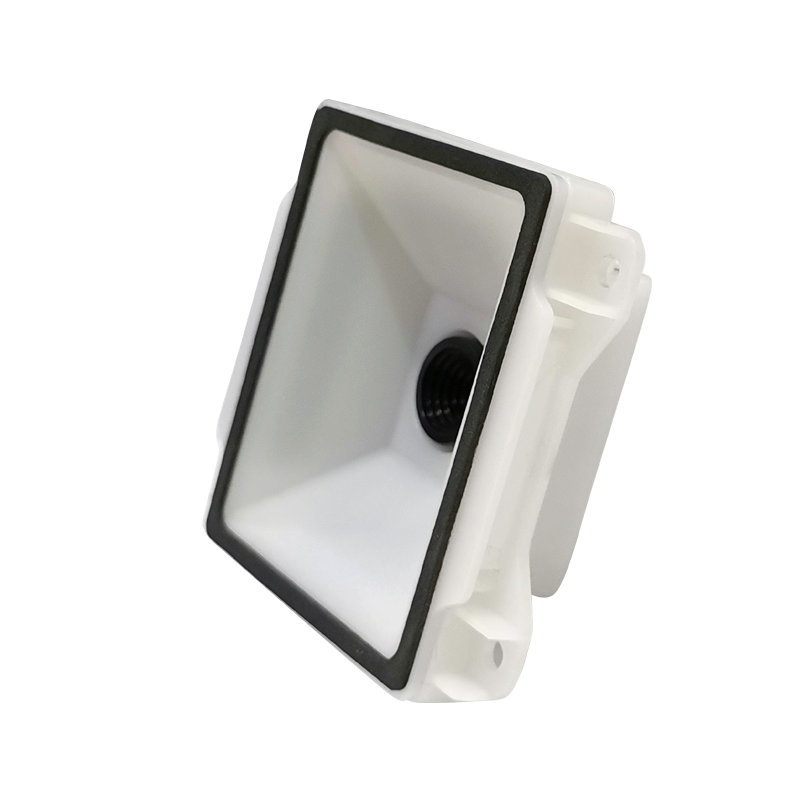

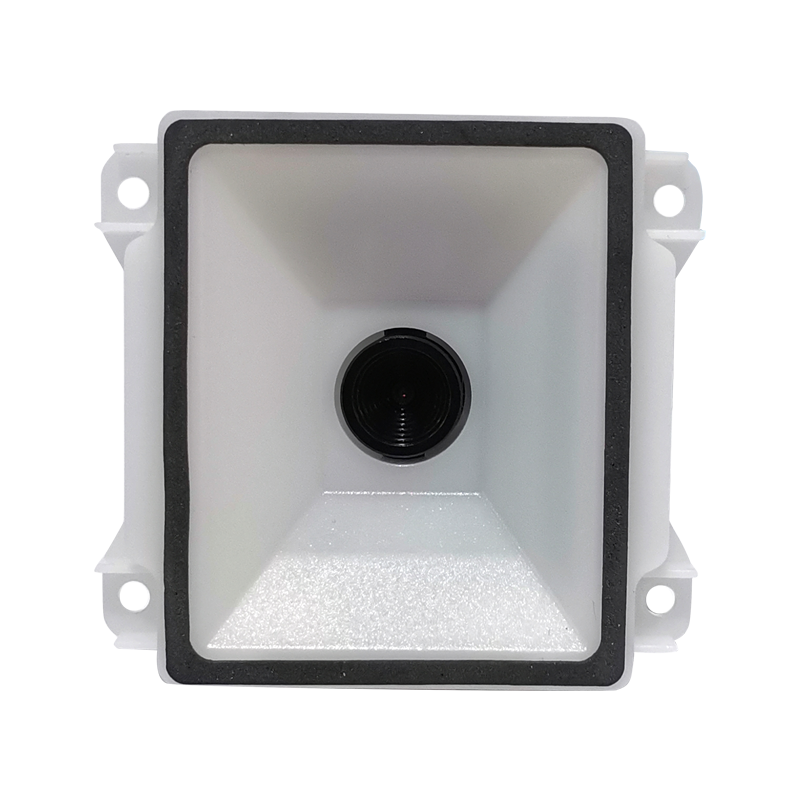

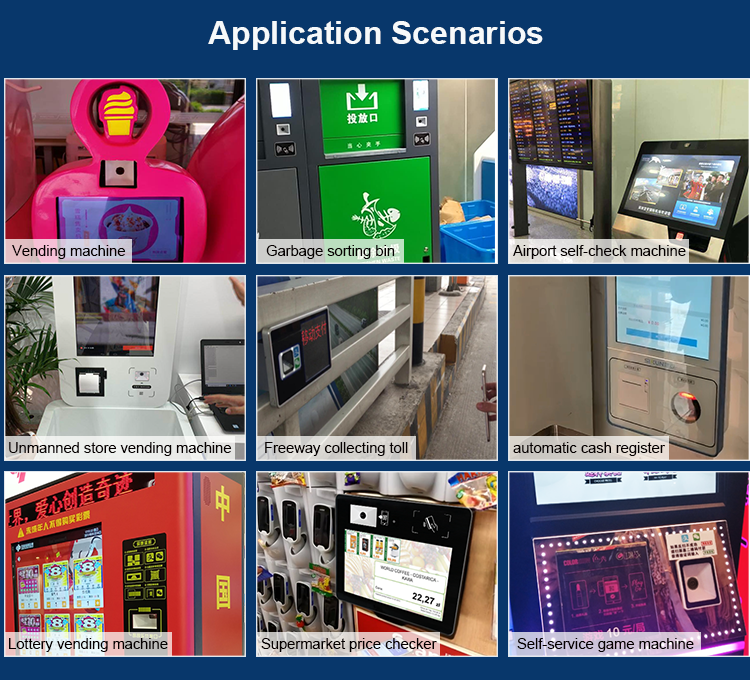

Z4S-320 embedded in Kiosk or vending machine CMOS code scanner

Mini Auto-scanning Module Plug and play, driver-free, convenient for usage.

Oem Barcode Scanner Module Supports Continuous/Auto-Induction , 2modes for option.

Barcode Oem Module Can scan the phone, computer and other electronic screen.

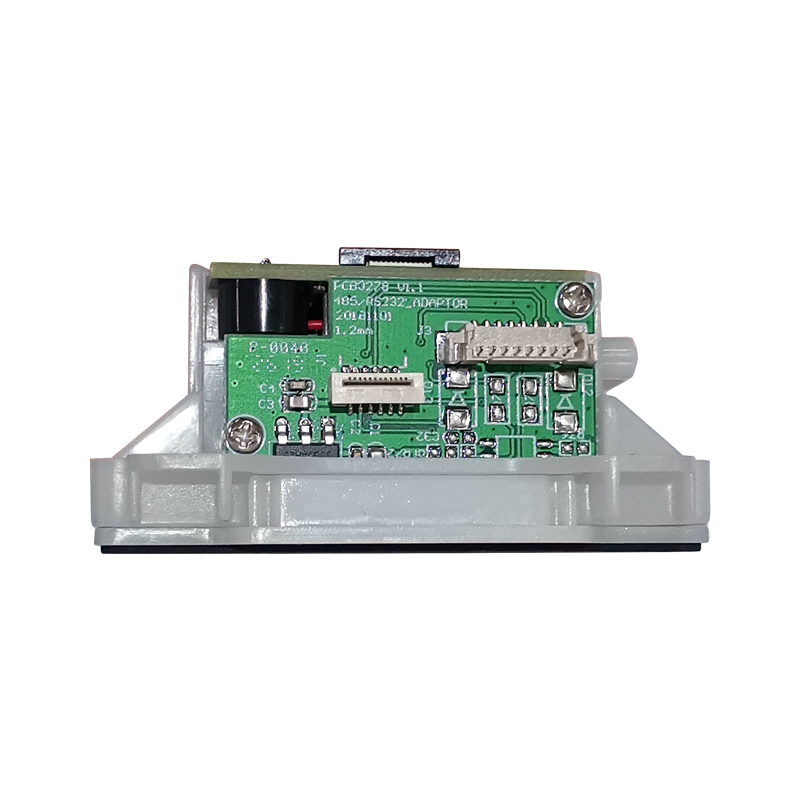

barcode scanner Embedded in Kiosk or vending machine CMOS code scanner Module Scan Engine 1D 2D Bar code for mobile payment

barcode scanner

Product Detail

Technical Parameters
Electrical Characteristics
Interface	USB,TTL-232(standard) USB , RS-232(optional) USB,RS485(optional) USB,Wiegand(optional)
Voltage requirement	DC 5V±5%(USB,RS232,RS485) DC 3.3V±5%(TTL-232)
Current consumption	135mA(Max) 74mA(Min)
Light source	Green LED*4
Photo sensor	CMOS array sensor
Resolution	640×480 pixels(300,000 pixel)
Decode angle	Pitch angle:±30° Skew angle:±40° Tilt angle:±180°
Field of View	80° (H) x 56° (V)
Reading accuracy	≥5mil
Operation Temp	0°C-50°C
Storage Temp	-5°C-55°C
Humidity	5%~95%
Dimensions	65mm x 61.2mm x 35.5mm(LWH)
Weight	28.7g
Secondary development	Support secondary development. Through serial port instructions
