Model No.: MK20-980
Certification: Ce, Other, Ce, Rohs
product status: Stock
Types of: Barcode Scanner
Scanning element type: Ccd, Cmos
Color point: 32 Bit
Interface Type: Usb, usb, TTL-232
place of origin: China
Warranty period (years): 1-Year
After-sales service: Call Center And On-Line Technical Support
Private Mold: Yes
Products Status: Stock
Type: Barcode Scanner
Scan Element Type: Cmos
Colour Depth: 32 Bit
Max Paper Size: N/A
Optical Resolution: 800*1000 pix
Scan Speed: 350±50 (scans/second)
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Software development kit (SDK): NO
Product Name: embedded in Barcode scan Module
Interface: USB/RS-232
Photo sensor: CMOS array sensor
Voltage / Current: DC 5V; Max 224ma
Dimensions (W X D X H): 100 mmx82mmx34mm
Weight: 128g
Packaging: Brown Box Packing or Customized Packing (Negotiated)
Productivity: 100000
Brand: winson
Transportation: Ocean,Land,Air,Express,Others
Place of Origin: china
Supply Ability: 100000
Certificate: ce
Port: guangzhou
Scanner With Laser Support secondary development -- the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.
2d Stationary Barcode Scanner Can be customized according to customer demand.

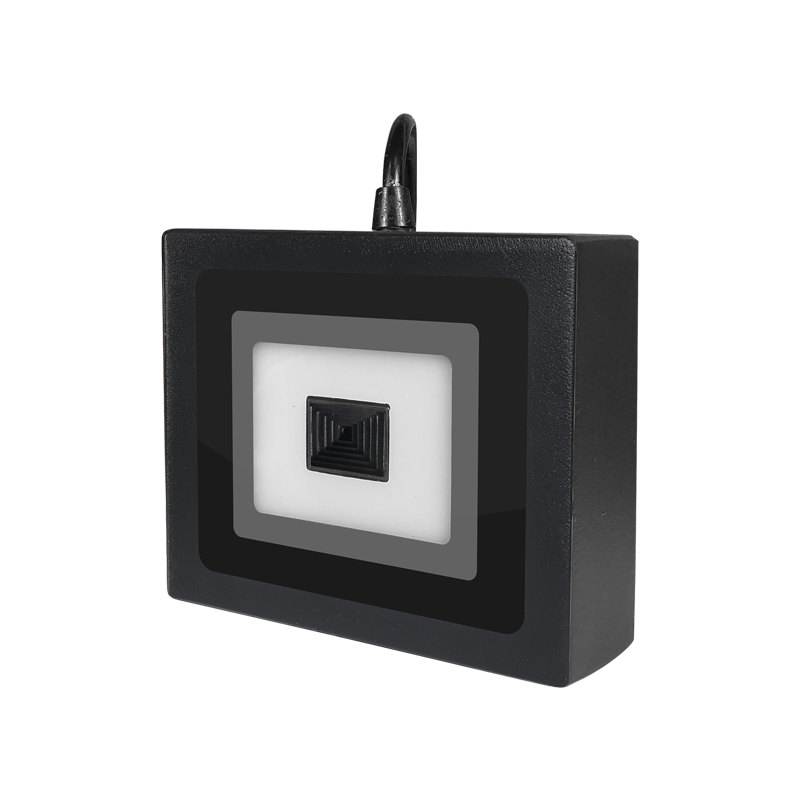

Winson MK20-980 Barcode Scanner Module for Kiosk Long-distance Bar code Reader
|
Technical Specifications |
||||||
|
Electrical Characteristics |
||||||
|
Interface Supported |
USB HID KEYBOARD; RS232; |
|||||
|
Input Voltage |
DC 5V±10% |
|||||
|
Current |
Max:224mA |
|||||
|
Optical Characteristics |
||||||
|
Image Sensor |
CMOS Array Sensor |
|||||
|
Sensor Resolution |
1280X800 Pixels |
|||||
|
Performance Characteristics |
||||||
|
Field of View |
36°(H),23°(V) |
|||||
|
Reading accuracy |
≥10 mil |
|||||
|
Language |
Multiple Languages |
|||||
|
Data Edition |
Support for custom data output |
|||||
|
Decode Capability |
1D: Code 128, Code 93, Code 39, ITF-6, ITF-14, Interleaved of 5, Industrial 2 of 5, Matrix 2 of 5, Standard 2 of 5, GS1 Databar, EAN-13, Code 11, MSI-PLESSEY,Code 11,PLESSEY,EAN-8,UPC-E,ISBN,CODEBAR 2D:QR Code |
|||||
|
Physical Characteristics |
||||||
|
Dimensions |
100mm*82mm*34mm(L*W*H) |
|||||
|
Weight |
128g |
|||||
|
Indicator |
Beeper, LED |
|||||
|
Environmental Characteristics |
||||||
|
Temperature |
0° to 50°C (operation) /-5° to 55°C (storage) |
|||||
|
Humidity |
20 - 85% (operation) ) 20 - 90% (storage) |
|||||
|
Shock Drop Test |
1.5m drop onto concrete surface |
|||||
|
Decoding Depth of Field |
||||||
|
Symbology |
Resolution |
texture |
Barcode width |
Nearest |
Farthest |
|
|
QR Code |
44.17mil |
On the screen |
2.3 x 2.3cm |
5cm |
100cm |
|
|
QR Code |
77.50mil |
On the screen |
4.0 x 4.0cm |
11cm |
180cm |
|
|
Code 39 |
15.83mil |
On the screen |
5.3 x 1.5cm |
4cm |
60cm |
|
|
Code 128 |
19.58mil |
On the screen |
6.8 x 2.0cm |
5cm |
85cm |
|
