Model No.: WNC-5060g
Certification: Ce, Other, Ce, Rohs
product status: Stock
Types of: Barcode Scanner
Scanning element type: Ccd
Color point: 32 Bit
Interface Type: Usb, usb, COM, PS/2
place of origin: China
Warranty period (years): 1-Year
After-sales service: Call Center And On-Line Technical Support
Products Status: Stock
Type: CCD Barcode Scanner
Scan Element Type: Ccd
Colour Depth: 32 Bit
Max Paper Size: N/A
Optical Resolution: 13mil
Scan Speed: 350 scans/second
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Product Name: WNC-5060g CCD Barcode Scanner
Interface: USB HID KEYBOARD/USB VCP/RS-232
Light Source: 632nm red LED
Photo sensor: CCD linear sensor
Sensor resolution: 1500pix
Voltage requirement: DC 5V+-10%
Min .PCS value: >30%UPC/EAN 13(13mil)
Mechanical shock: 1.5m drop onto concrete surface
Scan rate: 350+-50 (scans/second)
Packaging: Brown Box Packing or Customized Packing (Negotiated) 1pcs/box, 20/50pcs/carton
Productivity: 100000
Brand: winson
Transportation: Ocean,Land,Air,Express,Others
Place of Origin: china
Supply Ability: 100000
Certificate: ce
Port: guangzhou

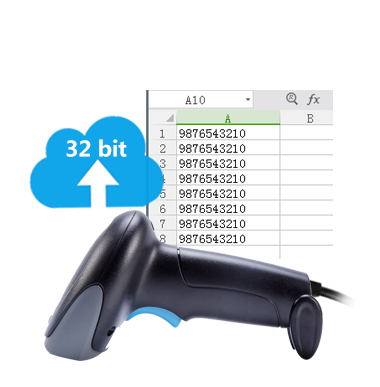

WNC-5060g Wired Handheld CCD linear CCD Barcode scanner
With mini USB receiver, plug and play, Ergonomic design, comfortable to hold Qr Code Scanner Module.
Barcode Scanner Cord Support to put prefix or suffix before or after scanned data,turn on/ off buzzer, identity barcode type, add keyboard keys (TAB, CR&LF, etc.)
2 colors optional: Black+blue or black+orange
|
Better scanning performance 32-bit CPU, scanning code speed up to 350 scans per second.
Support customized functions |
|
|
|
|
|
|
Plug and play
(for USB HID KEYBOARD, USB VCP,RS-232).
|
Mechanical shock After 1.5m drop onto concrete surface, still work as usual,shockproof and Anti-broken.
|
|
Technical Parameters |
|
|
Electrical Characteristics |
|
|
Interface |
RS-232/USB HID KEYBOARD/USB VCP |
|
Voltage requirement |
DC5V±10% |
|
Current consumption |
Max :115mA |
|
Optical Characteristics |
|
|
Photo sensor |
CCD linear sensor |
|
Sensor resolution |
1500Pix |
|
Light source |
632nm Red LED |
|
Performance Characteristics |
|
|
Scan rate: |
350±50 (scans/second) |
|
Decode angle |
Pitch angle:±30° Skew angle:±60° Tilt angle:±30° |
|
Min resolution |
0.127mm/5mil(PCS 0.9) |
|
Min.PCS value |
>30%UPC/EAN 13(13mil) |
|
Curvature |
R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm, PCS=0.9) |
|
Language |
Multiple languages |
|
Error rate |
1/500W |
|
Identification |
EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39, CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5, |
|
CODE 128,EAN/UCC 128,CODE 11,CHINESE POST |
|
|
Physical Characteristics |
|
|
Dimensions |
97mm×67mm×165mm(L x W x H) |
|
Weight |
170g |
|
Environmental Characteristics |
|
|
Temp |
-20°to 65°C ( -4°F to 149°F )(operation) -30°to 70°C (-22°F to 158°F)(storage) |
|
Humidity |
5 - 90% (operation) ) 5 - 90% (storage) |
|
Ambient light: |
Fluorescent light 4000 lx max |
|
Shock drop test |
1.5m drop onto concrete surface |
|
Regulatory |
|
|
Electrical safety |
UL 60950,EN/IEC 60950 |
|
EMI/RFI |
FCC Part 15 Class B ,EN 55024/CISPR 22 |
|
Environment |
RoHS |
