Choose The High Quality Portable Fixed Mount Engine QR Code Module etc.

Model No.: WGI-1000

Certification: Ce, Ce, Rohs

product status: Stock

Types of: Barcode Scanner

Scanning element type: Ccd

Color point: 32 Bit

Interface Type: Usb, Usb

place of origin: China

Warranty period (years): 1-Year

After-sales service: Call Center And On-Line Technical Support

Products Status: Stock

Type: QR Code Scanner Module

Scan Element Type: CMOS Scanner Module

Colour Depth: 32 Bit

Max Paper Size: N/A

Optical Resolution: 752X480 pixels

Scan Speed: Up to 60fps

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Product Name: Fixed Mount Engine

Product Type: QR Code Scanner Module

Interface: RS-232/USB HID KEYBOARD/USB VCP

Voltage requirement: DC 5V±10%

Current Consumption: Max:260mA

Photo sensor: COMS array sensor

Field of view: 39°(H) x 25°(V)

Min.PCS value: >15%UPC/EAN 13(13mil)

Dimensions: 57mm*63mm*32mm(L*W*H)

Weight: USB/USB VCP:125g

Excellent quality cheap price CMOS Bar code Reader 2D Fix-Mounted Barcode Scanner

Rugged Barcode Scanner reads 2D & 1D barcodes printed on labels or displayed on device screens.

Barcode Scanner Cable Powerful decoding capacity for most 1D and 2D codes,can read incomplete and fuzzy codes.

Barcode Scanner Usb Cable Plug and play, driver-free, convenient for usage.

barcode scanner

Superior reading performance 32-bit CPU,Winson barcode scanner is reading in high efficient, precise and sensitive. Accurate scanning The error rate is 1 / 5,000,000

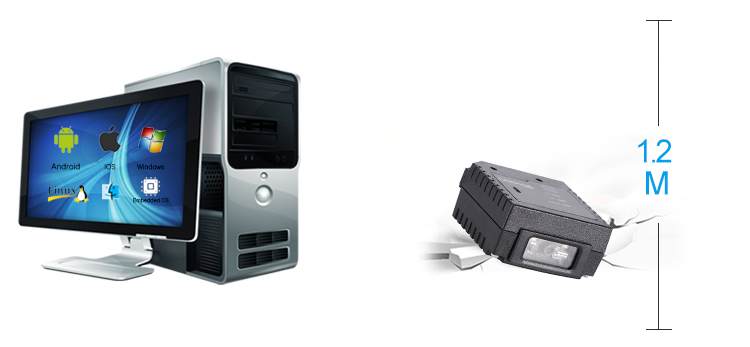

Compatibility Compatible with the current system used by the general public, such as Windows,Android, Mac OS,IOS,Linux,and so on.	Mechanical Shock After 1.2m drop onto concrete surface, still work as usual,shockproof and Anti-broken.

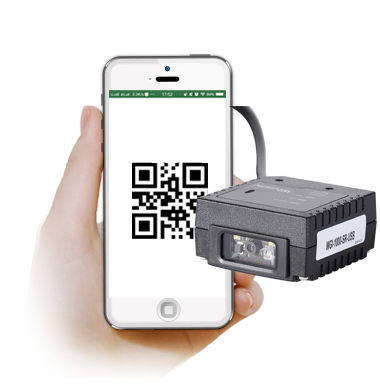

With the Winson WGI-1000, high-volume, hands-free scanning from retail POS and stations to self-service equipment to manufacturing lines can be achieved. With comprehensive data collection, your staff can scan almost any barcode - including one-dimensional and two-dimensional. It can also be used as a standalone fixed-mount scanner.

1.The superior performance
Industial design, the scanning speed is up to 2m/s, suiable for applications.
2.High detection accuracy
Using the new image decoding and intelligent lighting technology that can quikly scanning all kinds of 1D and 2D barcode.

Technical parameters
Electrical Characteristics
Interface	RS-232/USB HID KEYBOARD/USB VCP
Voltage requirement	DC 5V±10%
Current consumption	Max: 260mA
Optical Characteristics
Photo sensor	CMOS array sensor
SENSOR RESOLUTION	752X480 pixels
light source	Super-bright Red LED*2
Aim light source	Green Bar LED
Performance Characteristics
Decode angle	Pitch angle:±50° Skew angle:±50° Tilt angle:±180°
Min resolution	SR:5mil(0.127mm) HD:3mil(0.076mm)
Min.PCS value	>20%UPC/EAN 13(13mil)
Field of View	41º (H, pictured), 26º (V)
Language	multiple languages
Identification	1D codes: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey • Postal codes: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code • 2D codes: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF41, QR & Micro-QR Code, PDF417
Physical Characteristics
Dimensions	57 mm H x 63 mm W x 32 mm D
Weight	USB/USB VCP:125g RS-232:162g
Environmental Characteristics
Temp	-30 to 60 °C / -22 to 140 °F (operation) , -40 to 70 °C / -40 to 158 °F (storage)
Humidity	5 - 90% (operation) ) 5 - 90% (storage)
Ambient Light:	fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
Regulatory
Electrical Safety	IEC62471:2006 Exempt Group
EMI/RFI	FCC Part 15 Class B,EN 55024/CISPR 22
Environmental	RoHS
