Model No.: WNC-6083B/V
Certification: Ce
product status: Stock
Scanning element type: Ccd, Cmos
Color point: 32 Bit
Interface Type: Usb, usb, COM, PS/2
place of origin: China
Warranty period (years): 1-Year
After-sales service: Call Center And On-Line Technical Support
Private Mold: Yes
Products Status: Stock
Type: Wireless 1D Scanner
Scan Element Type: CCD Barcode Scanner
Colour Depth: 32 Bit
Max Paper Size: N/A
Optical Resolution: 2500 Pix
Scan Speed: 350+50(scans/second)
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Software development kit (SDK): NO

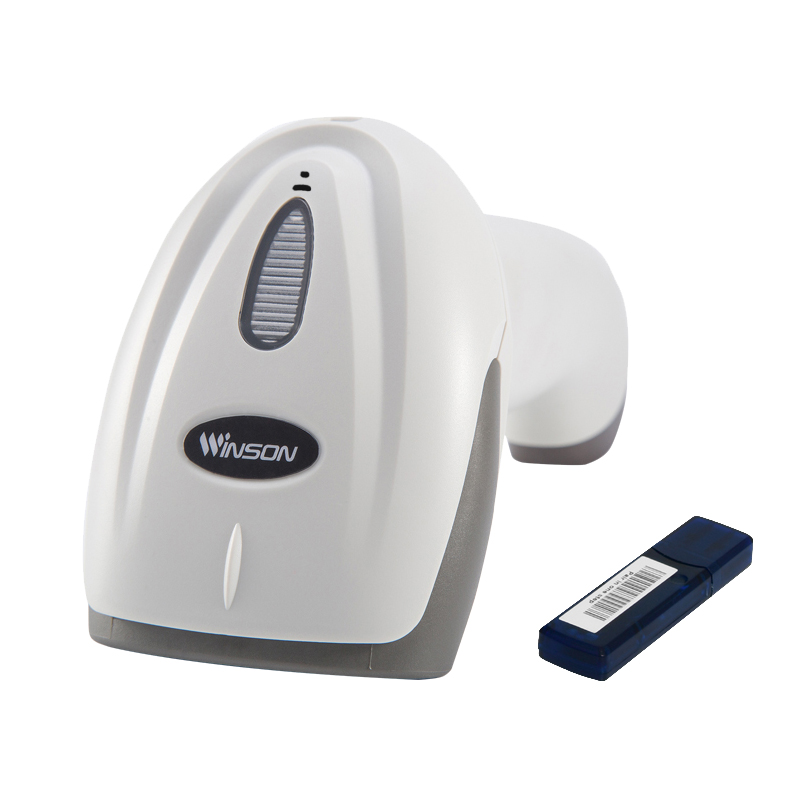

Product Name: Wireless 1D Scanner
Product Type: 1D CCD Barcode Scanner
Interface: RS-232/USB HID KEYBOARD/USB VCP
Photo sensor: CCD linear sensor
Communications: RF433
Voltage requirement: 5VDC±10%
Print Contrast: 20%UPC/EAN 13(13mil)
Min.Resolution: 0.101mm/4mil(PCS 0.9)

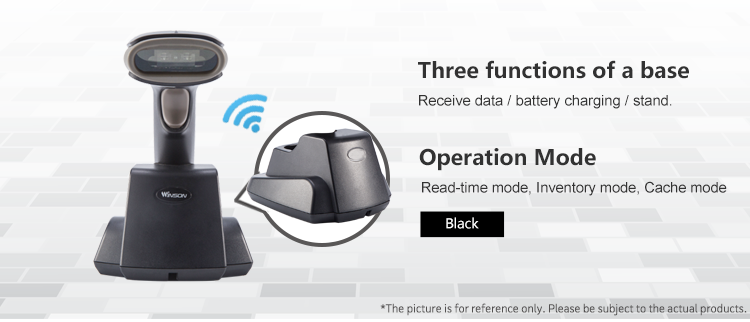

Operation Mode: Read-time mode/ Inventory mode/Cache mode
Shock drop test: 1.5m drop onto concrete surface
Packaging: Customized Packing (Negotiated)
Productivity: 100000
Brand: winson
Transportation: Ocean,Land,Air,Express,Others
Place of Origin: china
Supply Ability: 10000
Certificate: ce
Port: guangzhou
Barcode Scanner For Warehouse The reading distance can be up to 20cm highand the information in the barcode can be read quickly.
Wide Range Bar Code Reader Compact, lightweight, ergonomically designed and comfortable to feel.
Barcode Scanner 360 Excellent durability: Dust-resistant and water-resistant IP54, while withstanding 1.5-meter drops to the cement floor, ensuring reliable operational performance in the event of liquid splashes, drops and collisions in everyday use.
Winson Wireless 2D Stationary barcode scanner Supermarket Payment Barcode Scanner
|
|

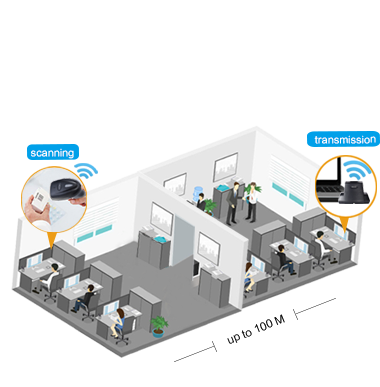

RF433 wireless transmission The transmission range up to 100 meters (In empty area).
Superior reading performance |
|
|
|
|
|
|
2000 mAh lithium battery
Supports 12 hours continuous normal manual trigger
working,compatible with wire and wireless working mode.
|
Mechanical Shock After 1.8m drop onto concrete surface, still work as usual,shockproof and Anti-broken. |
433 wireless technology;
The exquisite design, good applicability;

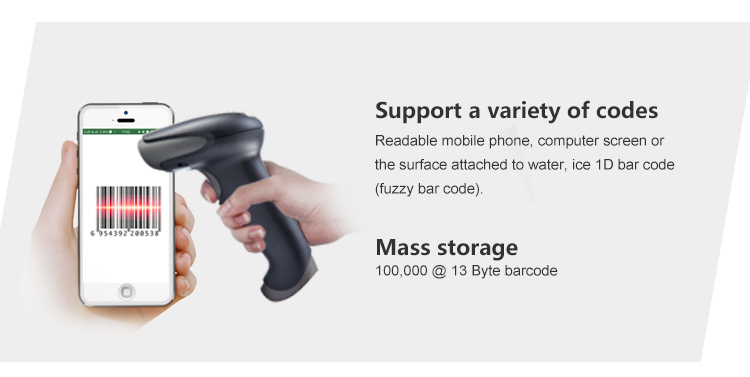

Screen and paper barcode to achieve paperless office.
1.RF433 wireless transmission technology
Winson WNC-6083B/V barcode scanner is able to reach 100 meters wireless transmission in an open area, has big memory of 100,000pcs 13 bytes barcodes, and real time mode, inventory mode, and cache mode.
|
technical parameters |
||
|
Wireless specifications |
||
|
Communications |
433 |
|
|
Communication frequency |
430-440MHz |
|
|
Transmission range |
≤100M(In empty area 100M ) |
|
|
Data rate |
10kbps |
|
|
Memory |
100,000@13Byte barcode |
|
|
Battery capacity |
2000mAh (Lithium battery) |
|
|
Charging time |
6H |
|
|
The life time of the full charge |
6h(continuous reading situation) 12h(Manual reading situation) More than 15 days(Stand-by time) |
|
|
Communication mode |
Read-time mode/Inventory mode/Cache mode |
|
|
Electrical Characteristics |
||
|
Interface |
RS-232/USB HID KEYBOARD/USB VCP/RS-485 |
|
|
Voltage requirement |
DC 5V±10% |
|
|
Current consumption |
Max:138mA |
|
|
Optical Characteristics |
||
|
Photo sensor |
CCD linear sensor |
|
|
Sensor Resolution |
2500pix |
|
|
light source |
632nm red led |
|
|
Performance Characteristics |
||
|
Scan Rate: |
350±50 (scans/second) |
|
|
Decode angle |
Pitch angle:±30° Skew angle:±75° Tilt angle:±45° |
|
|
Min resolution |
0.115mm/4.5mil(PCS 0.9) |
|
|
Min.PCS value |
>20%UPC/EAN 13(13mil) |
|
|
Language |
multiple languages |
|
|
Identification |
EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST |
|
|
curvature |
R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9) |
|
|
Physical Characteristics |
||
|
Dimensions |
70mm*95mm*168mm(L*W*H) |
|
|
Weight |
172g Scanner:172g 188g Receiver:188g |
|
|
Temp |
-20°-65°C / -4°-149°F((operation) ) -30°- 70°C /-22°-158°F(storage) |
|
|
Humidity |
5 - 90% (operation) ) 5 - 90% (storage) |
|
|
Ambient Light |
fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max |
|
|
Shock drop test |
1.5m drop onto concrete surface |
|
|
Regulatory |
||
|
Electrical Safety |
UL 60950,EN/IEC 60950 |
|
|
EMI/RFI |
FCC Part 15 Class B,EN 55024/CISPR 22 |
|
|
Environmenta |
RoHS |
|
