Model No.: WNC-6073/V
Certification: Ce, Other
product status: Stock
Types of: Barcode Scanner
Scanning element type: Cmos, Ccd
Color point: 32 Bit
Interface Type: Usb, usb, COM, PS/2
place of origin: China
Warranty period (years): 1-Year
After-sales service: Call Center And On-Line Technical Support
Private Mold: Yes
Products Status: Stock
Type: CCD Barcode Scanner
Scan Element Type: Ccd
Colour Depth: 32 Bit
Max Paper Size: N/A
Optical Resolution: 2500 Pix
Scan Speed: 350±20(scans/second)
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Software development kit (SDK): NO

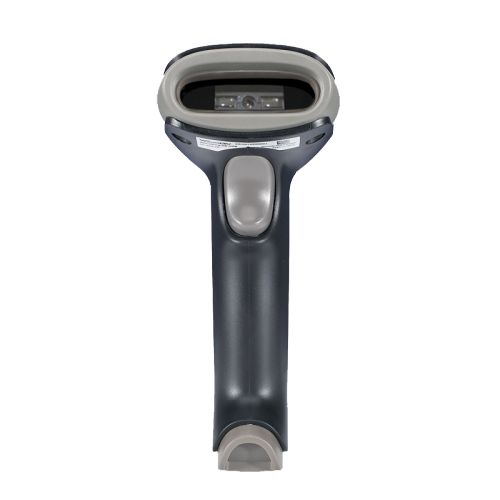

Product Name: Logistics CCD Barcode Scanner
Communication Mode: Wireless read-time mode
Photo sensor: CCD linear sensor
Voltage requirement: 5VDC±10%
Memory: 100,000@13Byte barcode
Battery Capacity: 1500mAh (Lithium battery)
Scan rate: 350+50(scans/second)
Min.Resolution: 0.115/4.5mil (PCS 0.9)
Language: Multiple languages
Packaging: Customized Packing (Negotiated)
Productivity: 10000
Brand: winson
Transportation: Ocean,Land,Air,Express
Place of Origin: guangzhou
Supply Ability: 100000
Certificate: ce
Port: Guangzhou
Excellent durability: while withstanding 1.5-meter drops to the cement floor, ensuring reliable operational performance in the event of liquid splashes, drops and collisions in everyday use.
view more >>New Style
|
Communication mode
|
Wired transmission mode/ Wireless Read-time mode/Inventory mode／Cache mode
|
|
Communication frequency
|
433MHz至440MHz
|
|
Transmission range
|
≤100M（In empty area 100M ）
|
|
Battery capacity
|
1500mAh (Lithium battery)
|
|
Charge Time from Empty to Full Charge
|
4.5H
|
|
Scans per Battery Charge
|
30,000 （1 scan per second）
|
|
Memory
|
100，000@13Byte barcode
|
|
Interface Supported
|
USB HID KEYBOARD/USB VCP
|
|
Input Voltage
|
DC 5V±10%
|
|
Current
|
Max:135mA
|
|
Image Sensor
|
CCD Linear Sensor
|
|
Sensor Resolution
|
2500pixels
|
|
Light Source
|
632nm Red LED
|
|
Decoding rate:
|
350 scans/second±20 scans/second
|
|
Scanning Angle
|
Pitch angle:±35°;Skew angle:±75°;Tilt angle:±40°
|
|
Min Resolution
|
0.115/4.5mil（PCS 0.9）
|
|
Min .PCS value
|
〉25%UPC/EAN 13（13mil）
|
|
Language
|
Multiple Languages
|
|
Data Edition
|
Support for custom data output
|
|
Decode Capability
|
EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93，INTERLEAVED 2OF5，STANDARD 2OF5，MATRIX 2OF5，CODE 128，EAN/UCC 128，CODE
11，CHINESE POST |
|
Dimensions
|
Scanner：90mm*67mm*168mm(L*W*H)
Receiver：55mm*24mm*8mm(L*W*H) |
|
Temperature
|
0°∽50°C / 32°∽122°F(operation) /-10°∽60°C /14°∽140°F(storage)
|
