Certification: Ce
product status: Stock
Types of: Barcode Scanner
Scanning element type: Ccd
Color point: 32 Bit
Interface Type: Usb, usb, COM, PS/2
place of origin: China
Warranty period (years): 1-Year
After-sales service: Call Center And On-Line Technical Support
Private Mold: Yes
Products Status: Stock
Type: CCD Barcode Scanner
Scan Element Type: Ccd
Colour Depth: 32 Bit
Max Paper Size: N/A
Optical Resolution: 2000 pix
Scan Speed: 350±20(scans/second)
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Software development kit (SDK): NO
Communication Mode: Wireless read-time mode
Photo sensor: CCD linear sensor
Voltage requirement: 5VDC±10%
Memory: 100,000@13Byte barcode
Battery Capacity: 2000mAh (Lithium battery)
Min.Resolution: 0.076/3mil (PCS 0.9)
Language: Multiple languages
Packaging: Customized Packing (Negotiated)
Productivity: 100000
Brand: winson
Transportation: Ocean,Land,Air,Express
Place of Origin: china
Supply Ability: 1000000
Certificate: ce
Port: guangzhou

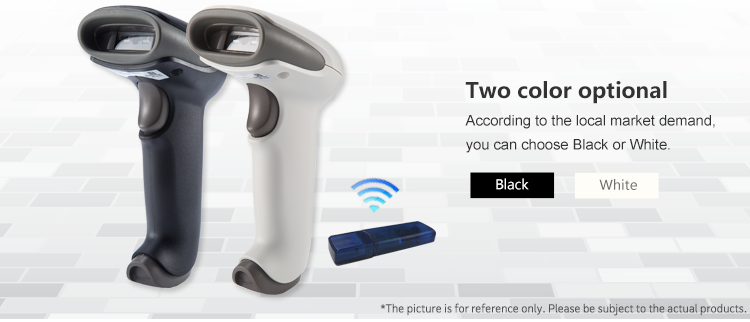

Winson WNC-6094/V New Product CCD Arduino Barcode Scanner 15M Wireless Connection Scanner
| 1.Winson WNC-6093/V Logistics CCD Barcode Scanner Wireless Code Reader Micro USB Scanner Qr Code Scanner Module |
| 2.Support read 1d barcode,silver paper with reflective material,and barcode surface with water and ice Bar Code Scanner. |
| 3.Support multiple keyboard language:USA, Germany, French, Italy, Spanish, Turkey and so on Ccd Barcode Scanner |
| d data... |
|
Wireless transmission The transmission range up to 15 meters (In empty area).
Superior reading performance |
|
|
|
|
|
|
2000 mAh lithium battery
Supports 12 hours continuous normal manual trigger
working,compatible with wire and wireless working mode.
|
Mechanical Shock After 1.8m drop onto concrete surface, still work as usual,shockproof and Anti-broken. |
|
Technical Specifications |
|||||||
|
Wireless specifications |
|||||||
|
Communication mode |
Wireless Read-time mode/Cache mode |
||||||
|
Communication frequency |
BT 4.2 |
||||||
|
Transmission range |
≤10M(In empty area 15M ) |
||||||
|
Battery capacity |
2000mAh (Lithium battery) |
||||||
|
Charge Time from Empty to Full Charge |
4.5H |
||||||
|
Scans per Battery Charge |
30,000 (1 scan per second) |
||||||
|
Memory |
100,000@13Byte barcode |
||||||
|
Electrical Characteristics |
|||||||
|
Interface Supported |
USB HID KEYBOARD/USB VCP |
||||||
|
Input Voltage |
DC 5V±10% |
||||||
|
Current |
Max:135mA |
||||||
|
Optical Characteristics |
|||||||
|
Image Sensor |
CCD Linear Sensor |
||||||
|
Sensor Resolution |
2500pixels |
||||||
|
Light Source |
632nm Red LED |
||||||
|
Performance Characteristics |
|||||||
|
Decoding rate: |
350 scans/second±20 scans/second |
||||||
|
Scanning Angle |
Pitch angle:±70°;Skew angle:±70°;Tilt angle:±45° |
||||||
|
Min Resolution |
0.076mm/3mil(PCS 0.9) |
||||||
|
Min .PCS value |
>20%UPC/EAN 13(13mil) |
||||||
|
Language |
Multiple Languages |
||||||
|
Data Edition |
Support for custom data output |
||||||
|
Decode Capability |
EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey |
||||||
|
Physical Characteristics |
|||||||
|
Dimensions |
Scanner:90mm*67mm*168mm(L*W*H) |
||||||
|
Weight |
Scanner:172g |
||||||
|
Indicator |
Beeper, LED |
||||||
|
Environmental Characteristics |
|||||||
|
Temperature |
0° to 50°C / 32° to 122°F(operation) /-10° to 60°C /14° to 140°F(storage) |
||||||
|
Humidity |
20 - 85% (operation) ) 20 - 90% (storage) |
||||||
|
Shock Drop Test |
1.5m drop onto concrete surface |
||||||
