Model No.: WGC-300
Certification: Ce, Ce, Rohs
product status: Stock
Types of: Barcode Scanner
Scanning element type: Ccd, Cmos
Color point: 32 Bit
Interface Type: Usb, Usb, Rs232
place of origin: China
Warranty period (years): 1-Year
After-sales service: Call Center And On-Line Technical Support
Products Status: Stock
Type: Scanner Module
Scan Element Type: Ccd
Colour Depth: 32 Bit
Max Paper Size: N/A
Optical Resolution: 5mil
Scan Speed: 350+-50 Scans/sec
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Product Name: WGC-300 CCD Scanner
Product Type: Fixed-Mount Scanner
Interface: USB HID KEYBOARD/USB VCP/RS-232
Voltage requirement: DC 5V±10%
Current Consumption: Max:118mA
Photo sensor: CCD linear sensor
Decode angle: Pitch angle:±30° Skew angle:±70° Tilt angle:±40°
Min X Dimension: 0.127mm/5mil(PCS 0.9)
Print Contrast: >25%UPC/EAN 13(13mil)
Dimension: 68mm*48mm*23.5mm(L*W*H)
Packaging: Brown Box Packing or Customized Packing (Negotiated)
Productivity: 10000
Brand: winson
Transportation: Ocean,Land,Air,Express,Others
Place of Origin: china
Supply Ability: 10000
Certificate: ce
Port: guangzhou
WGC-300 fix-mount barcode scanner 1d ccd linear sensor code reader for conveyor belt
1.Barcode Scanner Usb Cable Rapid Scanning Performance
2.Cord Barcode Scanner Very Compact, Extremely Durable
3.Zebra Cordless Scanner Highly visible aimer
4.2d Handheld Barcode Scanner Closed Housing
5.Interface Flexibility
|
Superior reading performance 32-bit CPU, scanning code speed up to 350 scans per second.

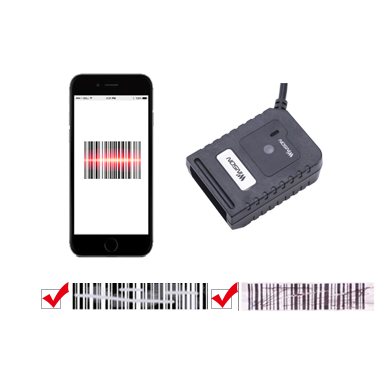

Accurate scanning |
|
|
|
|
|
|
Compatibility

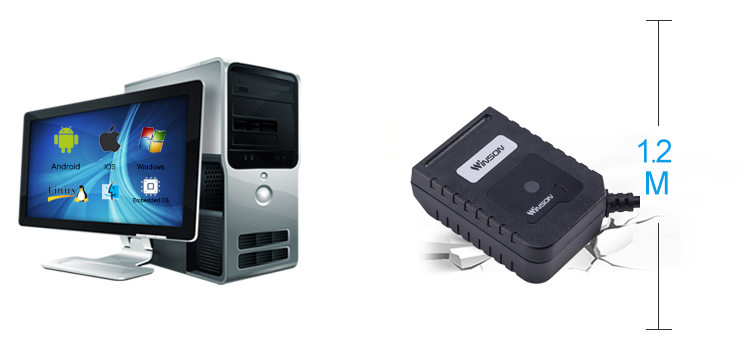

Compatible with the current system used by the general public, such as Windows,Android, Mac OS,IOS,Linux,and so on.
|
Mechanical Shock After 1.2m drop onto concrete surface, still work as usual,shockproof and Anti-broken.
|
|
Technical Parameters |
|
|
Electrical Characteristics |
|
|
Interface |
RS-232/USB HID KEYBOARD/USB VCP |
|
Voltage requirement |
5VDC±10% |
|
Current consumption |
Max:118mA |
|
Optical Characteristics |
|
|
Photo sensor |
CCD linear sensor |
|
Sensor Resolution |
2500pix |
|
light source |
632nm red led |
|
Performance Characteristics |
|
|
Scan Rate: |
350±50 (scans/second) |
|
Decode angle |
Pitch angle:±30° Skew angle:±70° Tilt angle:±40° |
|
Min resolution |
0.127mm/5mil(PCS 0.9) |
|
Min. PCS value |
>25%UPC/EAN 13(13mil) |
|
Curvature |
R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9) |
|
Identification |

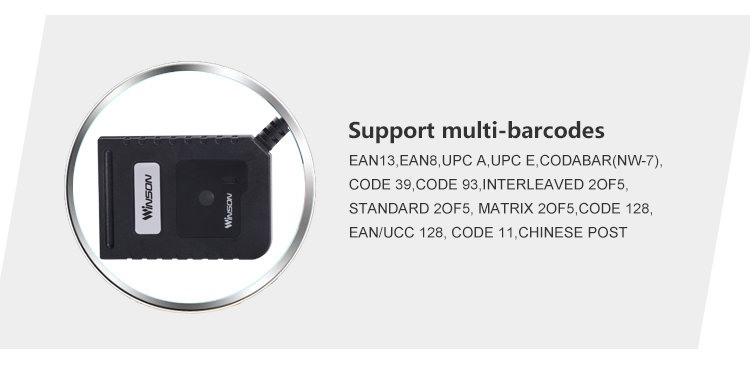

EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST |
|
Regulatory |
|
|
Electrical Safety |
UL 60950,EN/IEC 60950 |
|
EMI/RFI |
FCC Part 15 Class B,EN 55024/CISPR 22 |
|
Environmental |
RoHS |
|
Physical Characteristics |
|
|
Dimensions |
68 mm x 48 mm x24mm(L*W*H) |
|
Weight |
USB/USB VCP:118g RS-232:147g |
|
Environmental Characteristics |
|
|
Temp |
-20°-65°C / -4°-149°F((operation) ) -30°- 70°C /-22°-158°F(storage) |
|
Humidity |
5 - 90% (operation) ) 5 - 90% (storage) |
|
Ambient Light: |
fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max |
|
Shock drop test |
1.2m drop onto concrete surface |
