Model No.: WNI-6712/V
Certification: Ce, Ce, Rohs
product status: Stock
Types of: Barcode Scanner
Scanning element type: Cmos
Color point: 32 Bit
Interface Type: Usb, Usb
place of origin: China
Warranty period (years): 1-Year
After-sales service: Call Center And On-Line Technical Support
Products Status: Stock
Type: Barcode Scanner
Scan Element Type: Cmos
Colour Depth: 16 Bit
Max Paper Size: N/A
Optical Resolution: 648 X 488 Pixels
Scan Speed: 30 fps
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Interface: USB HID KEYBOARD(Wireless receiver)
Photo sensor: CMOS array sensor
Voltage requirement: DC5V±10%
Battery Capacity: 1500mah
Charging Time: 4.5H
Min resolution: 1D≥4mil,2D≥10mil
Min.PCS value: >15%UPC/EAN 13(13mil)
Dimension (L*W*H): 95mm*67mm*168mm(L*W*H)
Weight: 186
Packaging: Brown Box Packing or Customized Packing (Negotiated) 1pcs/box, 20/50pcs/carton
Productivity: 100000
Brand: winson
Transportation: Ocean,Land,Air,Express,Others
Place of Origin: china
Supply Ability: 100000
Certificate: ce
Port: guangzhou
Supporting the RS232,USB,TTL,Micro USB interface Ccd Barcode Scanner.

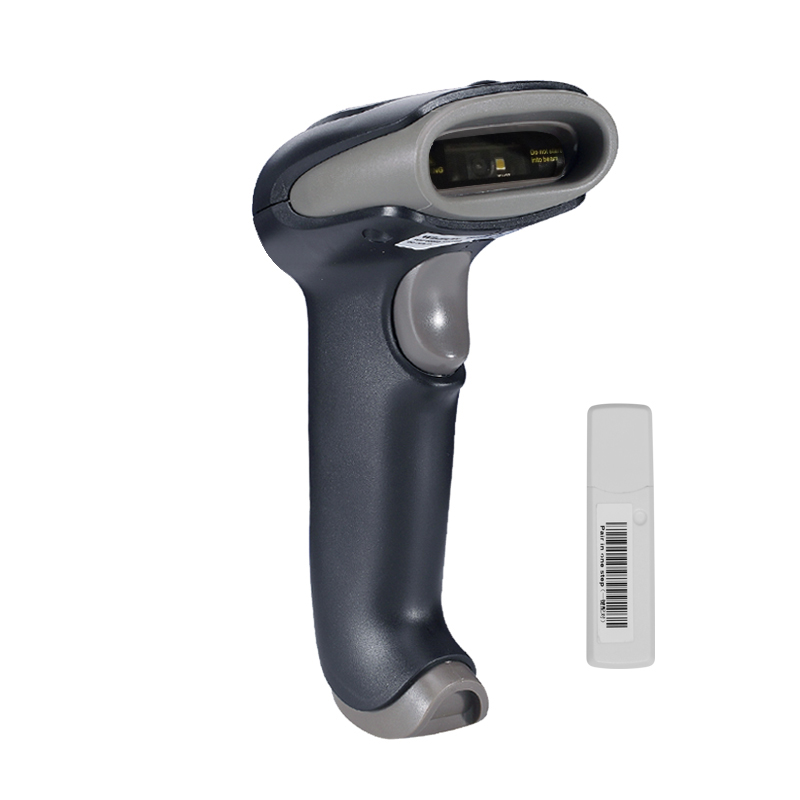

With mini USB receiver, plug and play, Ergonomic design, comfortable to hold Small Barcode Scanner Module .

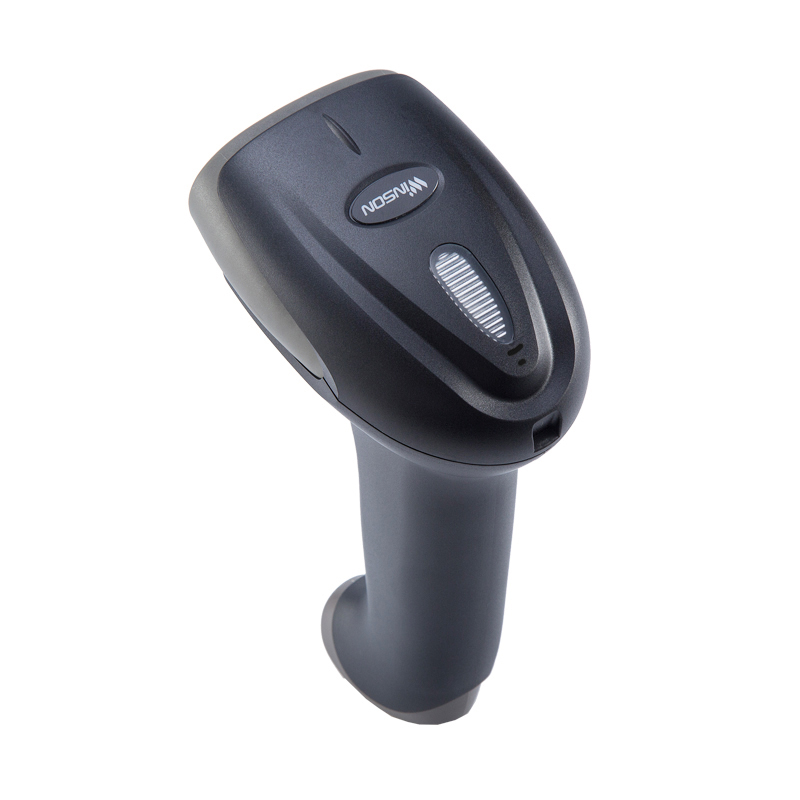

Winson WNI-6712/V Handheld Barcode Scanner CMOS 2D Wireless 2.4G Reader Wide Range bar Code Reader
|
Technical Parameters |
|
|
Electrical Characteristics |
|
|
Interface |
USB HID KEYBOARD(Wireless receiver) |
|
Current consumption |
Max:120mA,Min:50mA |
|
Optical Characteristics |
|
|

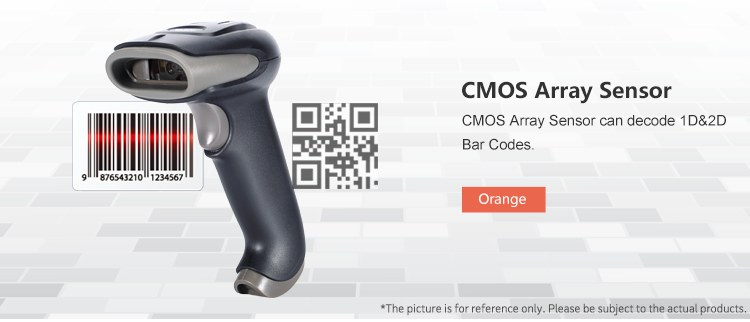

Photo sensor |
CMOS array sensor |
|
Sensor Resolution |
648x488 Pix |
|
Light source |
White LED*1 |
|
Aim light source |
Red Bar led |
|
Performance Characteristics |
|
|
Decode angle |
Pitch angle:±60° Skew angle:±60° Tilt angle:±180° |
|
Field of View |
46°(H),35°(V) |
|
Min resolution |
1D≥4mil 2D≥10mil |
|
Min.PCS value |
>15%UPC/EAN 13(13mil) |
|
Language |
Multiple languages |
|
Identification |
1D: Codabar,Code128,Code11,Code32,Code39,Code93,Composite,EAN/UPC,EAN-8,EAN-13,GS1 DataBar Expanded,GS1 DataBar Limited,GS1 DataBar Omnidirectional,Hong Kong 2 of 5(China Post),Interleaved 2 of 5,Matrix 2 of 5,Pharmacode.RSS-14,RSS-LIMITED,RSS-EXPANDED,Industrial 2 of 5,Telepen,Trioptic Code, UPC-A,UPC-E 2D:Aztec Code,Codablock F,DOT_CODE, HANXIN, Maxicode,MicroPDF417,Micro QR Code,MSI,PDF417,QR Code, DataMatrix |
|
Physical Characteristics |
|
|
Dimensions |
95mm×70mm×168mm(L x W x H) Receiver:83mm*18mm*13mm(L*W*H) |
|
Weight |
Scanner:186g Receiver:16g |
||||
|
Environmental Characteristics |
|||||
|
Temp |
0° to 50°C / 32° to 122°F(operation) /-10° to 60°C /14° to 140°F(storage) |
||||
|
Humidity |
20 - 85% (operation) ) 20 - 95% (storage) |
||||
|
Ambient Light |
fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max |
||||
|

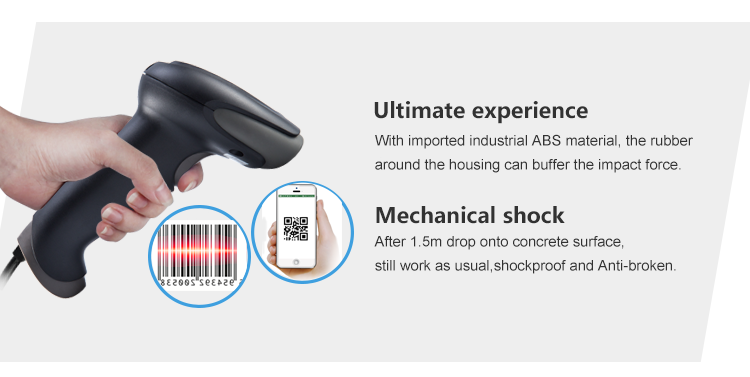

Shock drop test |
1.5m drop onto concrete surface |
||||
