Model No.: WNI-9210
Certification: Ce, Other, Ce
product status: Stock
Types of: Barcode Scanner
Scanning element type: Ccd, Cmos
Color point: 32 Bit
Interface Type: Usb, Usb, Rs232
place of origin: China
Warranty period (years): 1-Year
After-sales service: Call Center And On-Line Technical Support
Private Mold: Yes
Products Status: Stock
Type: Barcode Scanner
Scan Element Type: Cmos
Colour Depth: 16 Bit
Max Paper Size: N/A
Optical Resolution: 640X480 pixels
Scan Speed: 60
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Software development kit (SDK): NO
Color: Green, White
Interface Supported: RS-232/USB HID KEYBOARD/USB VCP
Input Voltage: DC 5V±10%
Current: Max:100mA
Image Sensor: CMOS Array Sensor
Light Source: White Led
Min resolution: 1D:5mil(0.127mm)
Min .PCS value: >30%UPC/EAN 13(13mil)
Language: Multiple languages
Packaging: Customized Packing (Negotiated)
Productivity: 100000
Brand: winson
Transportation: Ocean,Land,Air,Express
Place of Origin: guangzhou
Supply Ability: 100000
Certificate: ce
Port: guangzhou
|

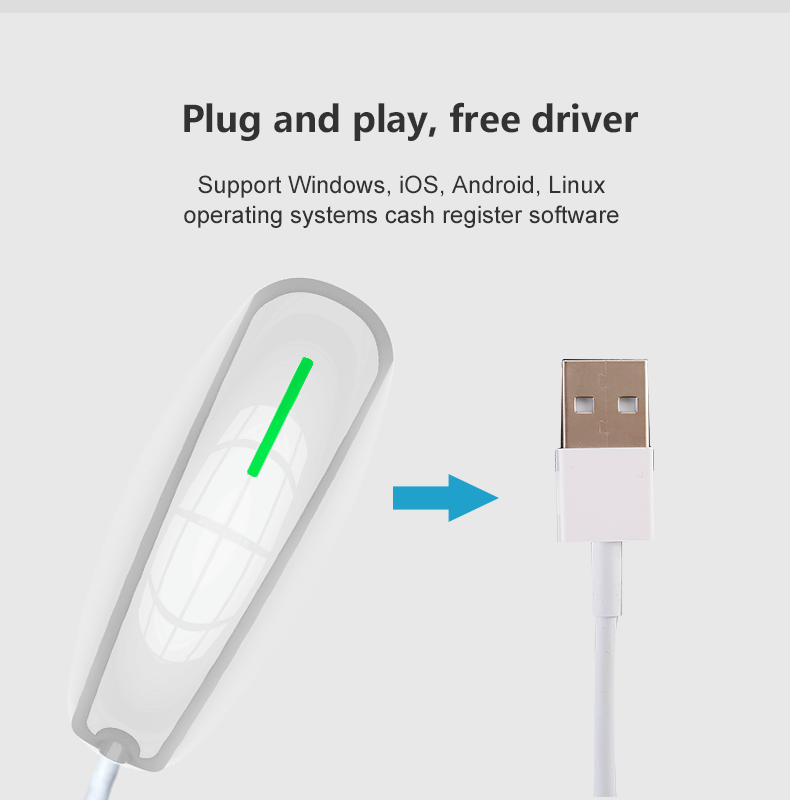

Interface Supported
|
RS-232/USB HID KEYBOARD/USB VCP
|
|
Input Voltage
|
DC 5V±10%
|
|
Current
|
Max:250mA
|
|
Image Sensor
|
CMOS Array Sensor
|
|
Sensor Resolution
|
1280X800 Pixels
|
|
Scanning Angle
|
Pitch angle:±70°;Skew angle:±70°;Tilt angle:±180°
|
|

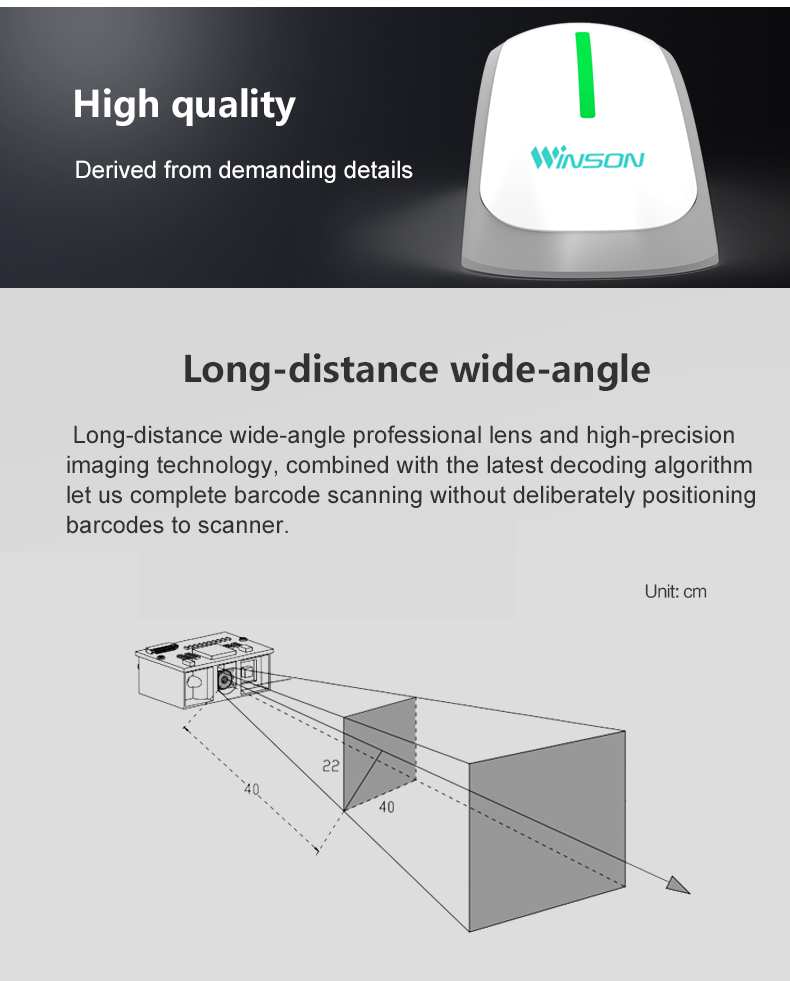

Field of View
|
53°(H),33°(V)
|
|
Min Resolution
|
1D：0.101mm/4mil（PCS 0.9）
2D：0.178mm/7mil（PCS 0.9） |
|
Min .PCS value
|
〉20% UPC/EAN 13（13mil）
|
|
Language
|
Multiple Languages
|
|
Data Edition
|
Support for custom data output
|
|
Decode Capability
|
1D: UPC-A/UPC-E；EAN-8/EAN-13；Code128；Code39；Code93；Code32；Code11；Codabar；Plessey；MSI；Interleaved 2 of 5；IATA 2 of 5；Matrix 2 of
5；Straight 2 of 5；Pharmacode；RSS-14；RSS-14 Expanded；RSS-14 Limited；Composite Code-A；Composite Code-B；Composite Code-C； 2D：PDF417；Micro PDF417；Data Matrix；QRcode；Micro QR；Aztec；MaxiCode |
|

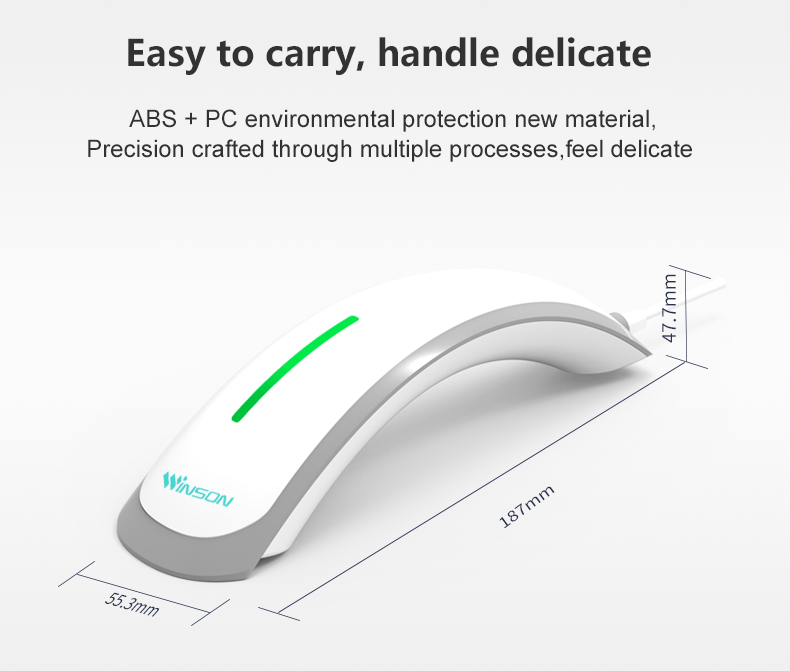

Dimensions
|
55.3mm*47.7mm*187mm(L*W*H)
|
|
Temperature
|
0°∽50°C / 32°∽122°F(operation) /-10°∽60°C /14°∽140°F(storage)
|
|
Humidity
|
20 - 85% (operation) ) 20 - 90% (storage)
|
|
Shock Drop Test
|
1.5m drop onto concrete surface
|
