Model No.: WGI-3220
Certification: Ce, Ce
product status: Stock
Types of: Barcode Scanner
Scanning element type: Ccd, Cmos
Color point: 32 Bit
Interface Type: Usb, usb, SCSI, IEEE 1394, COM, PS/2, Other
place of origin: China
Warranty period (years): 1-Year
After-sales service: Call Center And On-Line Technical Support
Private Mold: Yes
Products Status: Stock
Type: Mini Scan Engine
Scan Element Type: Cmos
Colour Depth: 32 Bit
Max Paper Size: N/A
Optical Resolution: 1280X800 pixels
Scan Speed: 60fps
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Software development kit (SDK): NO
Color: Black

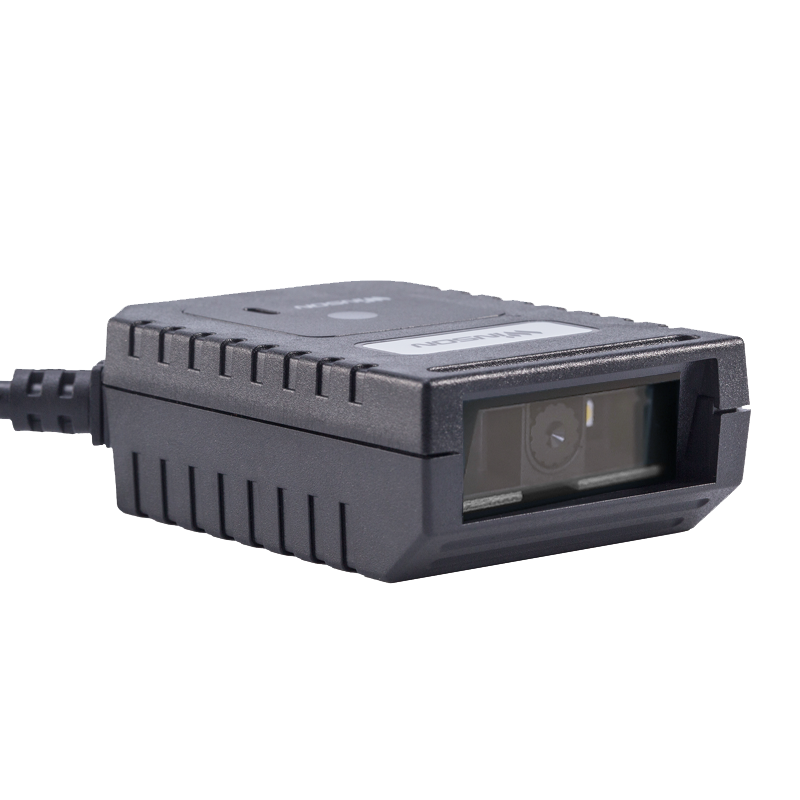

Product Name: Mini Scan Engine
Interface: RS-232/USB HID KEYBOARD/USB VCP
Voltage requirement: DC 5V±10%
Current Consumption: Max :250mA
Photo sensor: CMOS array sensor
Operating Temperature: -20°to 65°C /5 to 90%
Storage Temperature: -30°to 70°C /5 to 90%
Seismic capacity: 1.5 meters crop down to the concrete floor
Packaging: customized/OEM
Productivity: 100000
Brand: WINSON
Transportation: Ocean,Land,Air,Express
Place of Origin: GUANGZHOU
Supply Ability: 1000000
Certificate: CE
Port: guangzhou
|
Interface Supported
|
USB HID KEYBOARD/USB VCP or RS-232
|
|
Input Voltage
|
DC 5V±10%
|
|
Current
|
<320mA
|
|
Image Sensor
|
CMOS Array Sensor
|
|
Sensor Resolution
|
640 X 480 Pixels
|
|
Light Source
|
White LED
|
|
Aim Light Source
|
Green Bar LED
|
|
Scanning Angle
|
Pitch angle:±50°;Skew angle:±50°;Tilt angle:±180°
|
|
Field of View
|
38°(H),28.9°(V)
|
|
Min Resolution
|
1D ≥ 0.050mm/2mil(PCS 0.9)
2D ≥ 0.076mm/3mil(PCS 0.9) |
|
Min .PCS value
|
〉20% UPC/EAN 13（13mil）
|
|
Language
|
Multiple Languages
|
|
Data Edition
|
Support for custom data output
|
|
Decode Capability
|
1D:JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11,
Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/ Plessey POSTAL CODE: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET 2D: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code |
|
Dimensions
|
42mm*40mm*32mm(L*W*H)
|
|
Temperature
|
0°∽50°C / 32°∽122°F(operation) /-10°∽60°C /14°∽140°F(storage)
|
