Model No.: WDC3000
Certification: Ce
product status: Stock
Types of: Barcode Scanner
Scanning element type: Ccd, Cmos
Color point: 32 Bit
Interface Type: Usb, usb, SCSI, IEEE 1394, COM, PS/2, Other
place of origin: China
Warranty period (years): 1-Year
After-sales service: Call Center And On-Line Technical Support
Private Mold: Yes
Products Status: Stock
Type: CCD Bar Code Scanner Engine
Scan Element Type: Ccd
Colour Depth: 32 Bit
Max Paper Size: N/A
Optical Resolution: 2500pix
Scan Speed: 350±50 (scans/second)
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Software development kit (SDK): NO
Color: Black
Interface: TTL-232/USB
Photo sensor: CCD linear sensor
Voltage requirement: DC 3.3/5V±10%
Current Consumption: Max:120mA
Language: Multiple languages
Dimensions: 21mm x 23mm x 11mm(W x D x H)
Weight: 6g
Packaging: customized/oem
Productivity: 100000
Brand: winson
Transportation: Ocean,Land,Air,Express
Place of Origin: guangzhou
Supply Ability: 100000
Certificate: ce
Port: guangzhou
|
Interface
|
TTL-232/USB
|
|
Interface connector
|
0.5-12P FPC
|
|
Voltage requirement
|
DC 3.3/5V±10%
|
|
Current consumption
|
Max:120mA
|
|
Photo sensor
|
CCD linear sensor
|
|
Sensor Resolution
|
2500pix
|
|
light source
|
LED 632nm red led
|
|
Scan Rate:
|
350±50 (scans/second)
|
|
Decode angle
|
Pitch angle:±30° Skew angle:±70° Tilt angle:±45°
|
|
Min resolution
|
0.127mm/5mil（PCS 0.9）
|
|
Min.PCS value
|
〉20%UPC/EAN 13（13mil）
|
|
curvature
|
R≥15 mm (EAN8)，R≥20 mm (EAN13) （resolution=0.26mm，PCS=0.9）
|
|

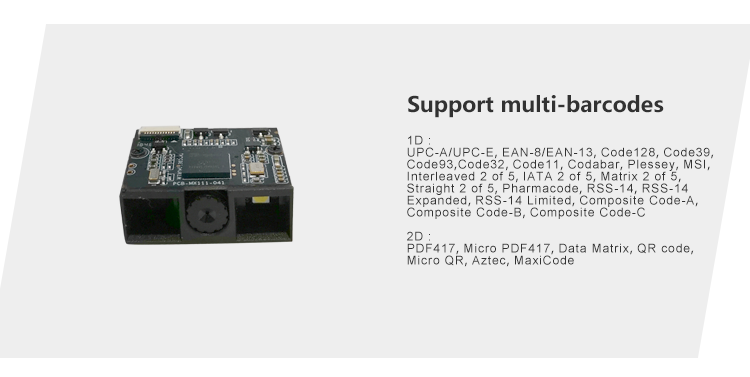

Identification
|
EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93，
INTERLEAVED 2OF5，STANDARD 2OF5，MATRIX 2OF5，CODE 128，EAN/UCC 128， CODE 11，CHINESE POST |
|

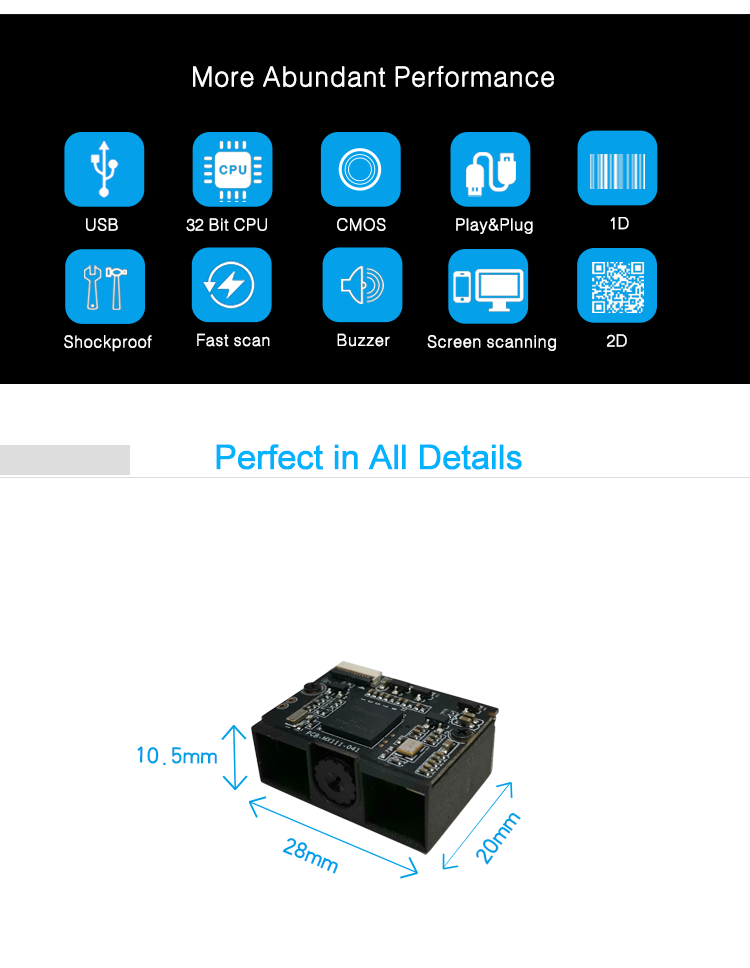

Dimensions
|
24 mm x 22 mm x12mm(L*W*H)
|
|
Configurations
|
Decode
|
|
Temp
|
-0°-65°C / 32°至 149°F((operation) ) -30°- 70°C /-22°至 158°
F(storage) |
