Model No.: WGI-3220
Certification: Ce, Ce, Rohs
product status: Stock
Types of: Barcode Scanner
Scanning element type: Ccd, Cmos
Color point: 32 Bit
Interface Type: Usb, usb, SCSI, IEEE 1394, COM, PS/2, Other
place of origin: China
Warranty period (years): 1-Year
After-sales service: Call Center And On-Line Technical Support
Products Status: Stock
Type: Mini Scan Engine
Scan Element Type: Cmos
Colour Depth: 32 Bit
Max Paper Size: N/A
Optical Resolution: 1280X800 pixels
Scan Speed: 60fps
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Product Name: Mini Scan Engine
Interface: RS-232/USB HID KEYBOARD/USB VCP
Voltage requirement: DC 5V±10%
Current Consumption: Max :250mA
Photo sensor: CMOS array sensor
Operating Temperature: -20°to 65°C /5 to 90%
Storage Temperature: -30°to 70°C /5 to 90%
Seismic capacity: 1.5 meters crop down to the concrete floor
Packaging: Customized Packing (Negotiated)
Productivity: 10000
Brand: winson
Transportation: Ocean,Land,Air,Express,Others
Place of Origin: china
Supply Ability: 10000
Certificate: ce
Port: guangzhou

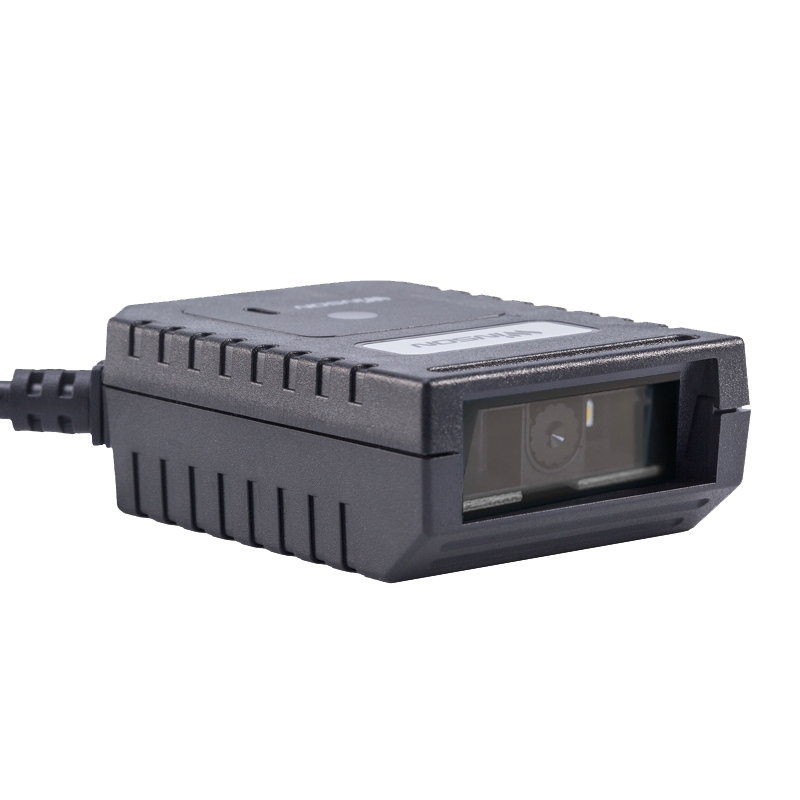

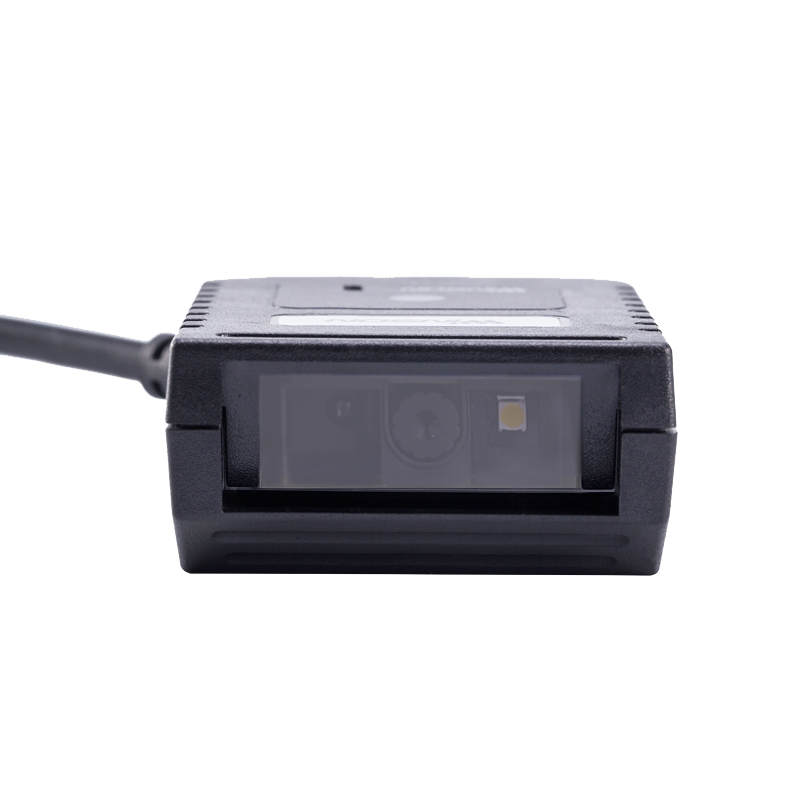

Winson WGI-3220 2D Fix- Mounted Barcode Scanner for Industrial assembly line
Scanner Mount Support over twenty different countries' keyboard layout.
Fixed Mount Scanner Super scanning and decoding ability, can read incomplete and fuzzy codes.
1d Barcode Module Small size,easily to integrate into any device, especially for limit space application.
|
Technical parameter |
|
|
Electrical Characteristics |
|
|
Interface |
RS-232/USB HID KEYBOARD/USB VCP |
|
Voltage requirement |
DC5V±10% |
|
Current consumption |
Max :250mA |
|
Optical Characteristics |
|
|
Photo sensor |
CMOS array sensor |
|
SENSOR RESOLUTION |
1280x800 pixels |
|
light source |
White LED x1 |
|
Aim light source |
red LED bar |
|
Performance Characteristics |
|
|
Decode angle |
Rotation angle:±70°;Skew angle:±70°;Tilt angle:±180° |
|
Field of View |
Level:53°,vertical:33° |
|
Min resolution |
1D:0.101mm/4mil(PCS 0.9) 2D:0.178mm/7mil(PCS 0.9) |
|
Min.PCS value |
>20%UPC/EAN 13(13mil) |
|
Keyboard language |
Multi keyboard language |
|
Data editing |
Support for custom data output |
|
Physical Characteristics |
|
|
Dimensions |
68mm×48mm×24mm(L×D×H) |
|
Weight |
USB/USB VCP:118g RS-232:147g |
|
Prompt mode |
LED indicator and buzzer |
|
Environmental Characteristics |
|
|
Temp |
-20°- 65°C (operation) , -30°- 70°C (storage) |
|
Humidity |
5 - 90% (operation) ;5 - 90% (storage) |
|
Ambient Light |
0-80,000 LUX |
|
Seismic capacity |
1.5 meters crop down to the concrete floor |
