Model No.: WDI-2011
Certification: Ce, Ce, Rohs
product status: Stock
Types of: Barcode Scanner
Scanning element type: Ccd, Cmos
Color point: 32 Bit
Interface Type: Usb, usb, TTL-232/USB
place of origin: China
Warranty period (years): 1-Year
After-sales service: Call Center And On-Line Technical Support
Products Status: Stock
Type: 2D Barcode Reader Module
Scan Element Type: 2D
Colour Depth: 32 Bit
Max Paper Size: N/A
Optical Resolution: 1280X800 pixels
Scan Speed: 60fps
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Return and Replacement, Call Center and on-line Technical Support
Product Name: 2D Barcode Reader Module
Product Type: QR Bar Code Scan Engine
Interface: TTL-232/USB
Photo sensor: COMS array sensor
Connector: 0.5-12P FPC
Min resolution: 1D:4mil(0.101mm) 2D:7mil(0.178mm)
Aim light source: Red LED
Field of view: 54°(H),33°(V)
Language: Multiple languages
Packaging: Customized Packing (Negotiated)
Productivity: 10000
Brand: winson
Transportation: Ocean,Land,Air,Express,Others
Place of Origin: china
Supply Ability: 100000
Certificate: ce
Port: guangzhou
Winson 2D barcode scanner engine WDI-2011 CCD barcode scanner barcode reader for vending machine
Supporting the RS232,USB,TTL,Micro USB interface Qr Code Scanner Module .
Built-in 2600mAh battery, super-long standby time Industrial Barcode Reader.
|
Better scanning performance 32-bit CPU, scanning code speed up to 60FPS per second.
Support bidirectional scanning Accurate scanning, the error rate is 1 / 5,000,000. |
|
|
|
|
|
|
Compatibility
Compatible with the current system used by the general public, such as Windows,Android, Mac OS,IOS,Linux,and so on.
|
Mechanical Shock After 1.0m drop onto concrete surface, still work as usual,shockproof and Anti-broken. |
|
Technical parameters |
||
|
Electrical Characteristics |
||
|

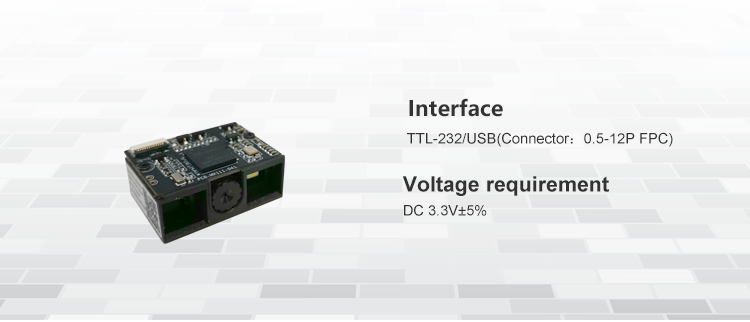

Interface |
TTL-232/USB |
|
|
Interface connector |
0.5-12P FPC |
|
|
Voltage requirement |
DC 3.3V±5% |
|
|
Current consumption |
Max:250mA |
|
|
Optical Characteristics |
||
|
Photo sensor |
CMOS array sensor |
|
|
SENSOR RESOLUTION |
1280X800pixels |
|
|
light source |
white LED*1 |
|
|
Aim light source |
Red Bar LED |
|
|
Performance Characteristics |
||
|
Decode angle |
Pitch angle:±65° Skew angle:±60° Tilt angle:±180° |
|
|
Min resolution |
1D:4mil(0.101mm) 2D:7mil(0.178mm) |
|
|
Min.PCS value |
>20%UPC/EAN 13(13mil) |
|
|
Field of View |
54°(H),33°(V) |
|
|
Language |
multipl languages |
|
