Model No.: WNL-6000g
Certification: Ce
product status: Stock
Types of: Barcode Scanner
Scanning element type: Ccd, Cmos
Color point: 32 Bit
Interface Type: Usb, usb, PS/2, RS232
place of origin: China
Warranty period (years): 1-Year
After-sales service: Call Center And On-Line Technical Support
Products Status: Stock
Type: Laser Handheld Barcode Scanner
Scan Element Type: Laser
Colour Depth: 32 Bit
Max Paper Size: N/A
Optical Resolution: 5mil
Scan Speed: 100±20 scans/second
Brand Name: Winson
Place Of Origin: Guangdong, China
Warranty(Year): 1-Year
After-sales Service: Call Center And On-Line Technical Support
Color: Black
Product Name: Portable Barcode Scanner
Product Type: Portable Laser Scanner
Interface: RS-232/RS-485/USB HID KEYBOARD/PS2/USB VCP
Light Source: 650nm Visible Laser Diode
Scan method: Bi-directional
Scan rate: 100+-20 scans/second
Curvature: R≥15 mm (EAN8),R≥20 mm (EAN13)
Min .PCS value: >30%UPC/EAN 13(13mil)
Voltage: DC5V+-10%
Current: Max 135ma
Packaging: Brown Box Packing or Customized Packing (Negotiated) 1pcs/box, 20/50pcs/carton
Productivity: 100000
Brand: winson
Transportation: Ocean,Land,Air,Express,Others
Place of Origin: china
Supply Ability: 100000
Certificate: ce
Port: guangzhou
Excellent decoding performance Laser Bar code Reader Portable
1D Embed scan module
Factory direct sale, Low price high performance Barcode Scanner For Warehouse.
With mini USB receiver, plug and play Ccd Fix- Mounted Scanner.
|
Better scanning performance 32-bit CPU, scanning code speed up to 120 scans per second.
Support bidirectional scanning |
|
|
|
|
|
|
Compatibility Compatible with the current system used by the general public, such as Windows, Android, Mac OS, IOS, Linux,
and so on. |
Mechanical Shock After 1.8m drop onto concrete surface, still work as usual,shockproof and Anti-broken. |
1.Support 1D long barcodes:
Winson WNL-6000 Laser Barcode Scanner can read 1D long barcode which length is beyond 10cm, and it can also read the 1D barcode under the direct sunlight.
2.Install conveniently, operate simply:
Plug and Play: No any driver or app needed, USB 2.0 cable wired connection, just insert the data cable into POS, computer or cash register, you can start to scan.
|
technical parameters |
|
|
Electrical Characteristics |
|
|
Interface |
RS-232/USB HID KEYBOARD/USB VCP/RS-485/PS2 |
|
Voltage requirement |
DC 5V±10% |
|
Current consumption |
Max:135mA |
|
Optical Characteristics |
|
|
light source |
650nm visible laser diode |
|
Performance Characteristics |
|
|
Operating mode |
single read multiple read Continuous read |
|
Scan Rate: |
100 scans/second± 20 scans/second |
|
Decode angle |
Pitch angle:±35° Skew angle:±75° Tilt angle:±40° |
|
curvature |
R≥15 mm (EAN8),R≥20 mm (EAN13)(resolution=0.26mm,PCS=0.9) |
|
Min resolution |
SR:0.127/5mil(PCS 0.9) HD:0.08/3.2mil(PCS 0.9) |
|
Min .PCS value |
>25%UPC/EAN 13(13mil) |
|
error rate |
1/500W |
|
Language |
multiple languages |
|
Identification |

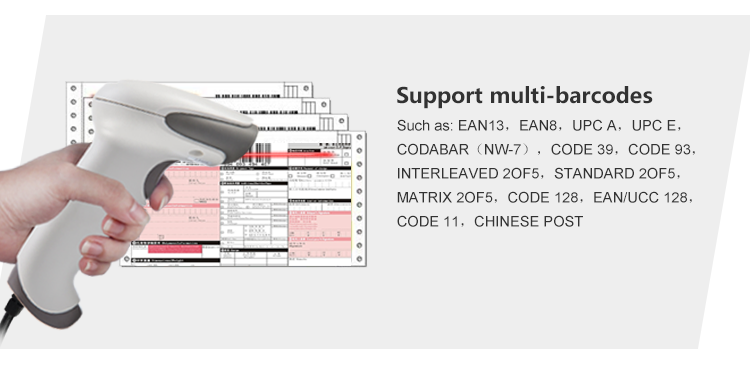

EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST |
|
Physical Characteristics |
|
|
Dimensions |
70mm*95mm*168mm(L*W*H) |
|
Weight |
132.4g |
|
Environmental Characteristics |
|
|
Temp |
-20°-65°C / -4°- 149°F((operation) ) -30°- 70°C /-22°- 158°F(storage) |
|
Humidity |
5 - 90% (operation) ) 5 - 90% (storage) |
|
Ambient Light: |
fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max |
|
Shock drop test |
1.5m drop onto concrete surface |
|
MBTF |
30,000 hours except laser diode (10.000 hours) and except mirror scan unit (10,000 hours) |
|
Regulatory |
|
|
Laser Safety |
JIS-C-6802 Class 2 |
|
Electrical Safety |
UL 60950,EN/IEC 60950 |
|
EMI/RFI |
FCC Part 15 Class B,EN 55024/CISPR 22 |
|
Environmental |
RoHS |
