Embedded 1D Barcode Scanner Module 32 Bit

——

Unit Price:

USD 17.0000 - 21.0000 / Others

inquiry

Basic Info

——

Model No.: WDC-1002

Certification: Ce

product status: Stock

Types of: Barcode Scanner

Scanning element type: Ccd, Cmos

Color point: 32 Bit

Interface Type: Usb, usb, TTL/RS232

place of origin: China

Warranty period (years): 1-Year

After-sales service: Call Center And On-Line Technical Support

Private Mold: Yes

Products Status: Stock

Type: OEM CCD Barcode Scanner Module

Scan Element Type: Ccd

Colour Depth: 32 Bit

Max Paper Size: N/A

Optical Resolution: 2500pix

Scan Speed: 350±50 (scans/second)

Brand Name: Winson

Place Of Origin: Guangdong, China

Warranty(Year): 1-Year

After-sales Service: Call Center And On-Line Technical Support

Software development kit (SDK): NO

Color: Black

Product Type: 1D Scanner Engine

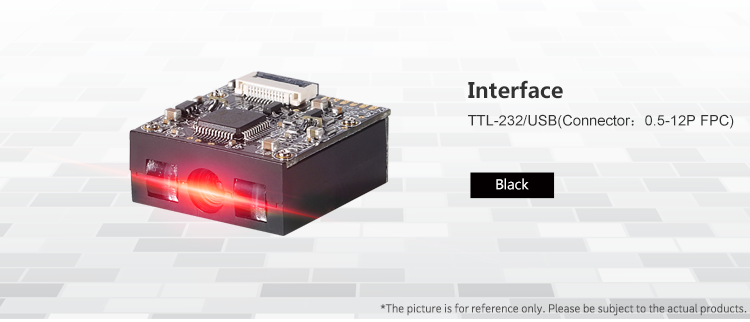

Interface: TTL-232/USB

Photo sensor: CCD linear sensor

Light Source: 632nm red LED

Current Consumption: Max:120mA

Min.Resolution: 0.101mm/4mil(PCS 0.9)

Min.PCS value: >15%UPC/EAN 13(13mil)

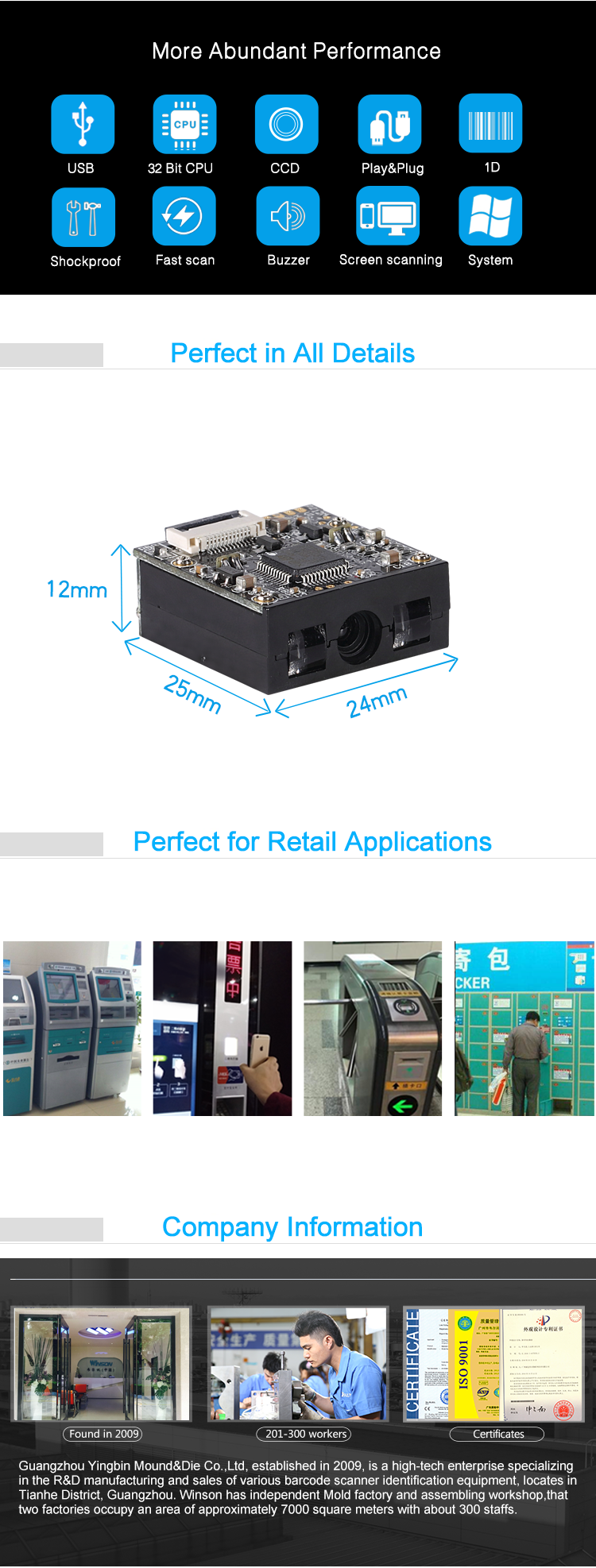

Dimension(L*W*H): 24mm*25mm*12mm

Weight: 6g

Additional Info

——

Packaging: Customized Packing (Negotiated)

Productivity: 100000

Brand: WINSON

Transportation: Ocean,Land,Air,Express,Others

Place of Origin: CHINA

Supply Ability: 100000

Certificate: CE

Port: guangzhou

Product Description

——

Barcode Scanner Module

Wholesale OEM Embedded 1D Barcode Scanner Module 32 Bit OEM SCAN MODULE

Features

1.OEM CCD Barcode Scanner Module 1D Scanner Engine For Vending Machine Small Barcode Scanner Module.

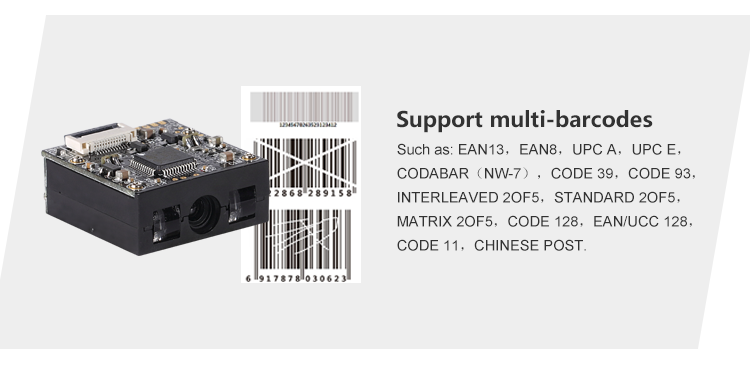

2.CCD Linear Sensor,support read 1d paper and screen barcodes Embedded Scanner.

3.Support multiple keyboard language: USA, Germany, Italy, Spanish,Turkey and so on Bar Code Scanner.

4.Support add a prefix/suffix, delete the last four characters, interlaced upload data Ccd Barcode Scanner...

Product Description

Barcode Scanner Module

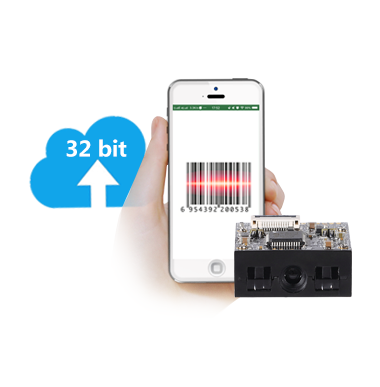

Better scanning performance 32-bit CPU, scanning code speed up to 350 scans per second. Support bidirectional scanning Accurate scanning, the error rate is 1 / 5,000,000.

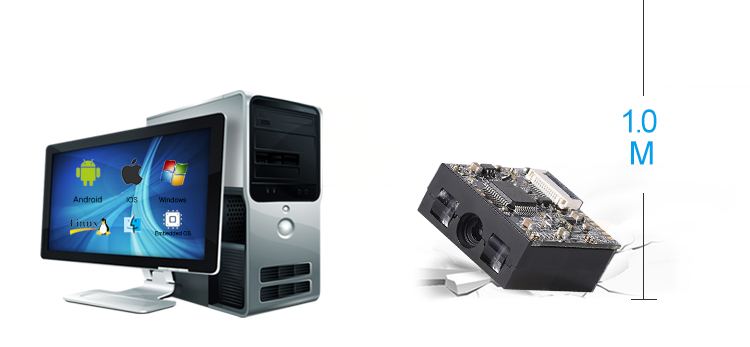

Compatibility Compatible with the current system used by the general public, such as Windows,Android, Mac OS,IOS,Linux,and so on.	Mechanical Shock After 1.0m drop onto concrete surface, still work as usual,shockproof and Anti-broken.
